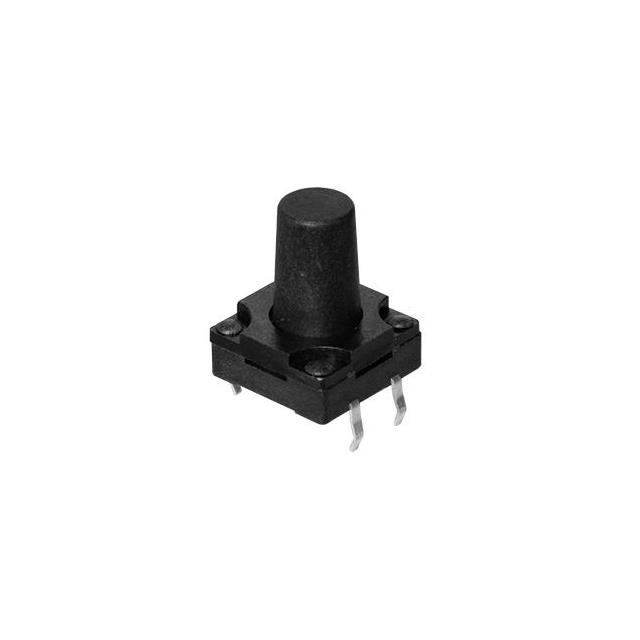

TS15-1212-125-BK-260-SCR-D

TS15-1212-125-BK-260-SCR-D

Part Number	TS15-1212-125-BK-260-SCR-D
Manufacturer	CUI Devices
Other Part Numbers	2223-TS15-1212-125-BK-260-SCR-D-ND 2223-TS15-1212-125-BK-260-SCR-D
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Tactile Switches
Manufacturer		CUI Devices
Series		TS15
Packaging		Bag
Part Status		Active
Mounting Type		Through Hole
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-30°C ~ 80°C
Termination Style		PC Pin
Illumination		Non-Illuminated
Contact Rating @ Voltage		0.05A @ 12VDC
Actuator Type		Standard
Operating Force		260gf
Outline		12.00mm x 12.00mm
Actuator Height off PCB, Vertical		12.50mm
Actuator Orientation		Top Actuated

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TS15-1212-125-BK-260-SCR-D

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 858

Can ship immediately.
