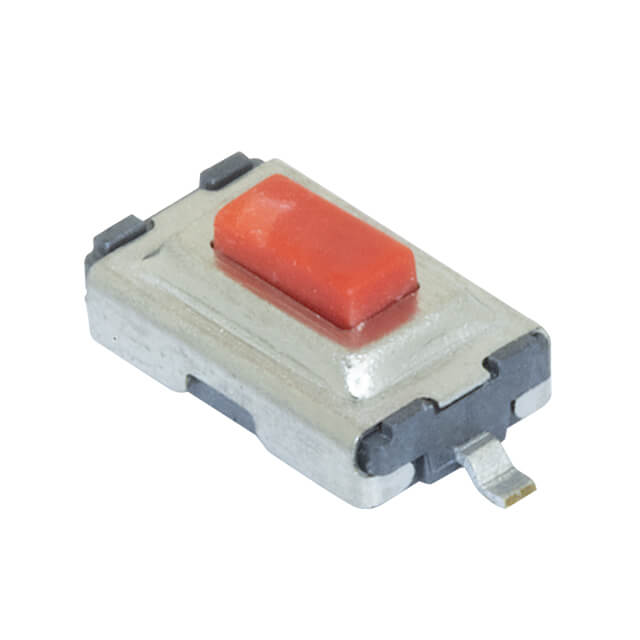

TS09-63-25-R-160-SMT-TR

TS09-63-25-R-160-SMT-TR

Part Number	TS09-63-25-R-160-SMT-TR
Manufacturer	CUI Devices
Other Part Numbers	2223-TS09-63-25-R-160-SMT-TR-ND 2223-TS09-63-25-R-160-SMT-TRCT-ND 2223-TS09-63-25-R-160-SMT-TRDKR-ND 2223-TS09-63-25-R-160-SMT-TRCT 2223-TS09-63-25-R-160-SMT-TRDKR 2223-TS09-63-25-R-160-SMT-TR
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Tactile Switches
Manufacturer		CUI Devices
Series		TS09
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Mounting Type		Surface Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-30°C ~ 80°C
Termination Style		Gull Wing
Illumination		Non-Illuminated
Contact Rating @ Voltage		0.05A @ 12VDC
Actuator Type		Rectangular Button
Operating Force		160gf
Outline		6.10mm x 3.70mm
Actuator Height off PCB, Vertical		2.50mm
Actuator Orientation		Top Actuated

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TS09-63-25-R-160-SMT-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 5690

Can ship immediately.
