TRC105

Part Number
TRC105
Manufacturer TOKO / Murata
Other Part Numbers
583-1159-2-ND
583-1159-1-ND
583-1159-6-ND
583-1159-6
583-1159-1
583-1159-2
Description IC RF TXRX ISM<1GHZ 32WFQFN
Detailed Description IC RF TxRx Only General ISM < 1GHz 300MHz ~ 510MHz 32-WFQFN Exposed Pad
Datasheet Datasheet

Product Attributes

Category
Manufacturer TOKO / Murata
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete

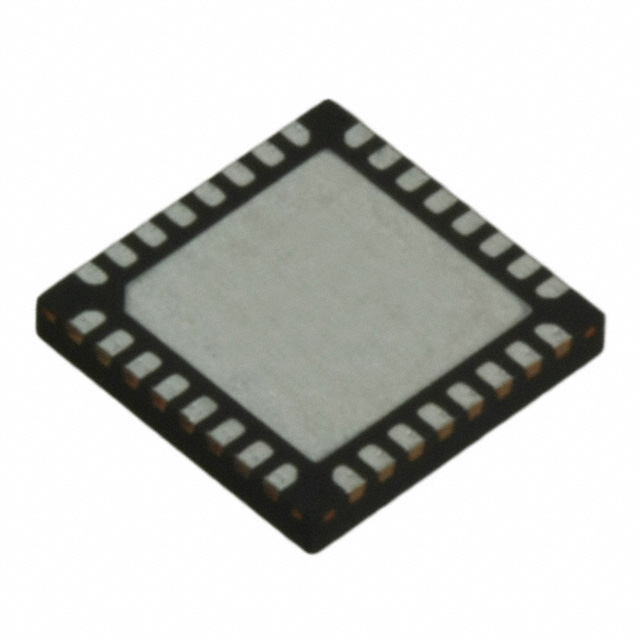

Package / Case 32-WFQFN Exposed Pad
Sensitivity -112dBm
Mounting Type Surface Mount
Frequency 300MHz ~ 510MHz
Type TxRx Only
Operating Temperature -40°C ~ 85°C
Voltage - Supply 2.1V ~ 3.6V
Power - Output 13dBm
Current - Receiving 2.7mA
Data Rate (Max) 200kbps
Current - Transmitting 16mA ~ 25mA
Supplier Device Package 32-QFN (5x5)
Modulation FSK, OOK
RF Family/Standard General ISM < 1GHz
Serial Interfaces SPI
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets TRC105

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
