TRC104

Part Number
TRC104
Manufacturer TOKO / Murata
Other Part Numbers
583-1136-2-ND
583-1136-6
583-1136-2
583-1136-1
Description IC RF TXRX ISM>1GHZ 24VFQFN
Detailed Description IC RF TxRx Only General ISM > 1GHz 2.4GHz 24-VFQFN Exposed Pad
Datasheet Datasheet

Product Attributes

Category
Manufacturer TOKO / Murata
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete

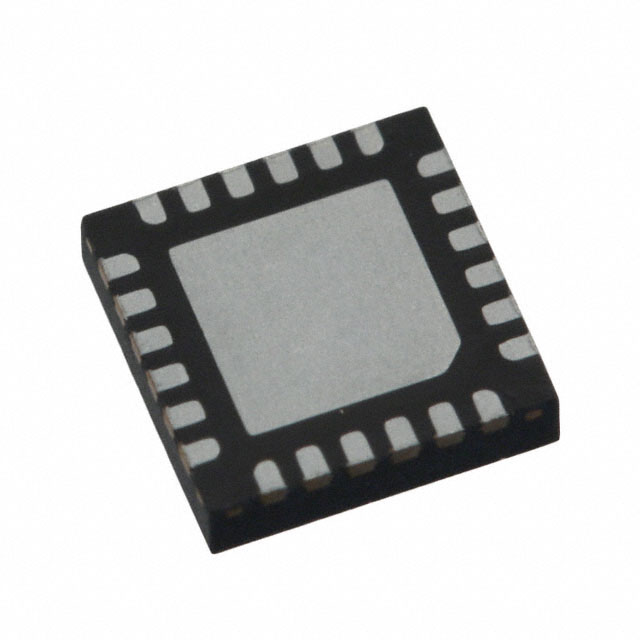

Package / Case 24-VFQFN Exposed Pad
Sensitivity -95dBm
Mounting Type Surface Mount
Frequency 2.4GHz
Type TxRx Only
Operating Temperature -40°C ~ 85°C
Voltage - Supply 1.9V ~ 3.6V
Power - Output 0dBm
Current - Receiving 18mA ~ 19mA
Data Rate (Max) 1Mbps
Current - Transmitting 9mA ~ 13mA
Supplier Device Package 24-QFN (4x4)
Modulation GFSK
RF Family/Standard General ISM > 1GHz
Serial Interfaces SPI
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets Module, IC,SAW Products 10/Mar/2017

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A991B1
HTSUS 8517.79.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
