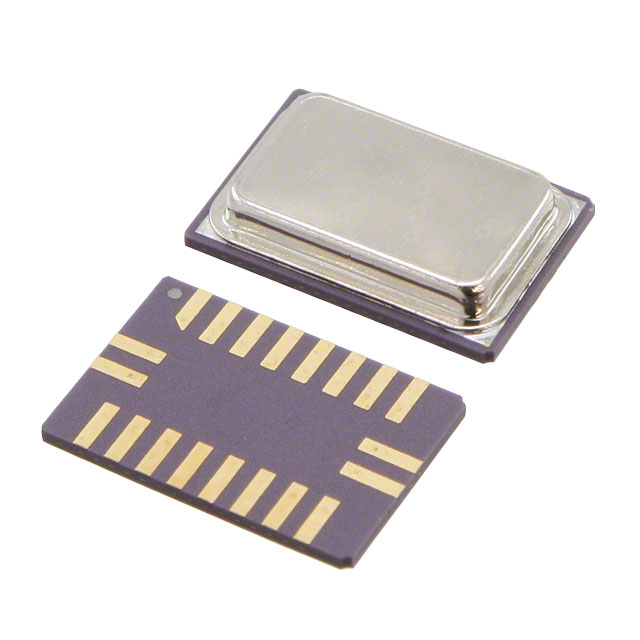

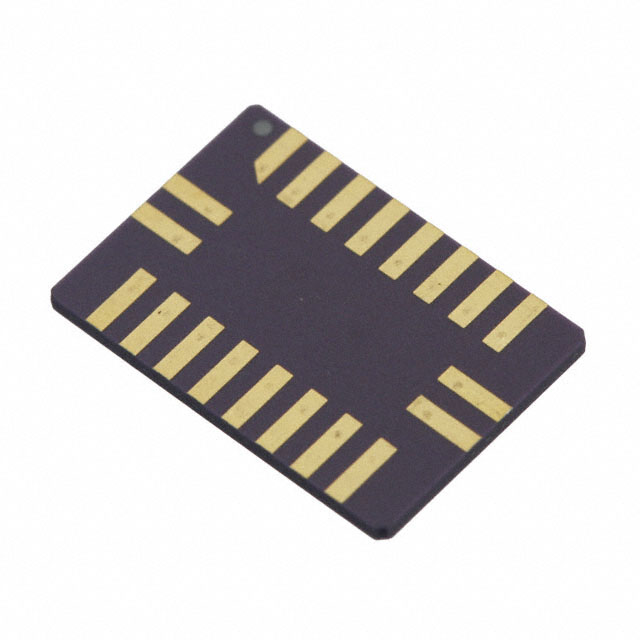

TR1001

Part Number
TR1001
Manufacturer TOKO / Murata
Other Part Numbers
583-1180-2-ND
583-1180-2
583-1180-1
583-1180-6
Description IC RF TXRX ISM<1GHZ 20SMD MODULE
Detailed Description IC RF TxRx Only General ISM < 1GHz 868MHz 20-SMD Module

Product Attributes

Category
Manufacturer TOKO / Murata
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 20-SMD Module
Sensitivity -106dBm
Mounting Type Surface Mount
Frequency 868MHz
Type TxRx Only
Operating Temperature -40°C ~ 85°C
Voltage - Supply 2.2V ~ 3.7V
Power - Output 1.5dBm
Current - Receiving 1.8mA ~ 3.8mA
Data Rate (Max) 115.2kbps
Current - Transmitting 12mA
Supplier Device Package SM-20H
Modulation ASK, OOK
RF Family/Standard General ISM < 1GHz
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets TR1001
Datasheets DR,RX,TR,Txyyy Series 31/Mar/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A991G
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
