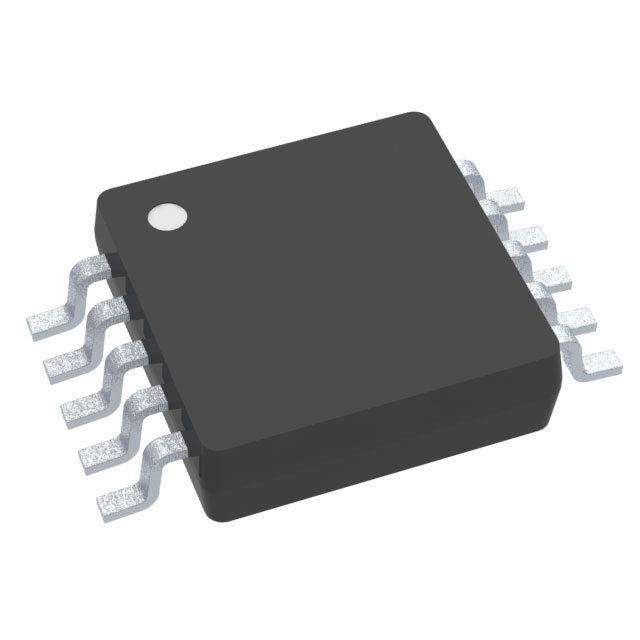

TPS3613-01DGS

Part Number
TPS3613-01DGS
Manufacturer Texas Instruments
Other Part Numbers
296-10912-5-ND
-TPS3613
-TPS3613-01DGSG4
-296-10912-5-ND
TPS361301DGS
-296-10912-5-NDR
296-10912-5
296-10912-5-NDR
-TPS3613-01DGSG4-NDR
-TPS3613-01DGS-NDR
TEXTISTPS3613-01DGS
2156-TPS3613-01DGS
-296-10912-5
Description IC SUPERVISOR 1 CHANNEL 10VSSOP
Detailed Description Supervisor Push-Pull, Totem Pole 1 Channel 10-VSSOP
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
Packaging
Tube
Part Status Active
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Mounting Type Surface Mount
Output Push-Pull, Totem Pole
Type Battery Backup Circuit
Reset Active High/Active Low
Operating Temperature -40°C ~ 85°C (TA)
Number of Voltages Monitored 1
Reset Timeout 60ms Minimum
Voltage - Threshold Adjustable/Selectable
Supplier Device Package 10-VSSOP
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets Mult Dev Assembly/Wafer Site 08/Feb/2024

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3139

Can ship immediately.
