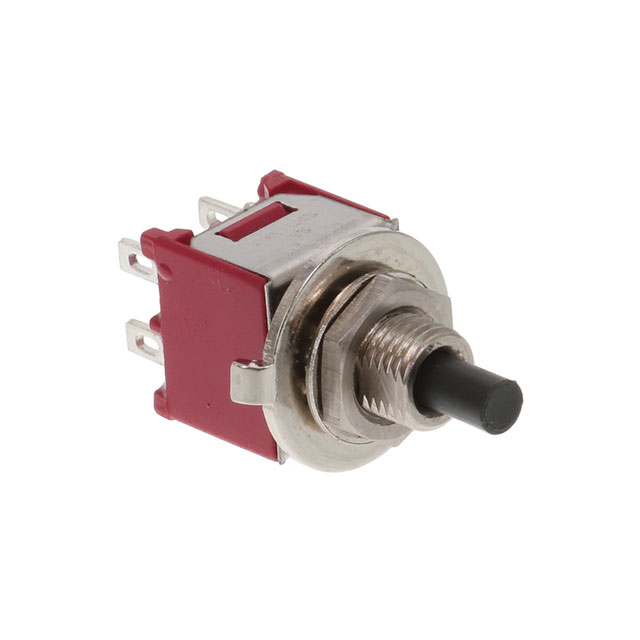

TP21SHZQE

TP21SHZQE

Part Number	TP21SHZQE
Manufacturer	Littelfuse / C&K
Other Part Numbers	CKN4054-ND CKN4054 2266-TP21SHZQE *TP21SHZQE
Description	SWITCH PUSH DPST-NO 1A 120V
Detailed Description	Pushbutton Switch DPST-NO Standard Panel Mount, Rear
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Littelfuse / C&K
Series		TP
Packaging		Bulk
Part Status		Active
Features		Sealed
Current Rating (Amps)		1A (AC/DC)
Mounting Type		Panel Mount, Rear
Circuit		DPST-NO
Type		Standard
Switch Function		Off-Mom
Operating Temperature		-30°C ~ 85°C
Termination Style		Solder Lug
Actuator Type		Round, Plunger
Panel Cutout Dimensions		Circular - 4.95mm Dia
Color - Actuator/Cap		Black
Actuator Marking		Power Symbol
Voltage Rating - AC		120 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TP21SHZQE
Datasheets		TP Series_SH, SH8, SH9

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 196

Can ship immediately.
