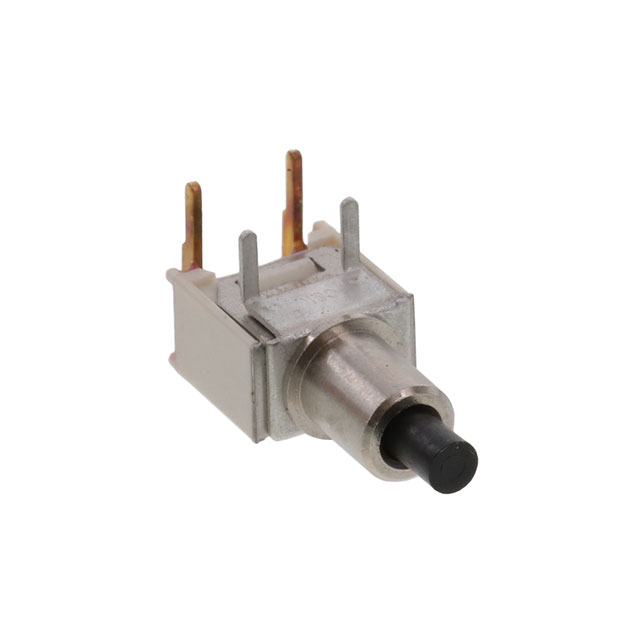

TP11SH8ABE

TP11SH8ABE

Part Number	TP11SH8ABE
Manufacturer	Littelfuse / C&K
Other Part Numbers	CKN4002-ND CKN4002 *TP11SH8ABE 2266-TP11SH8ABE
Description	SWITCH PUSH SPST-NO 0.4VA 20V
Detailed Description	Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Littelfuse / C&K
Series		TP
Packaging		Bulk
Part Status		Active
Features		Sealed
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Through Hole, Right Angle
Circuit		SPST-NO
Type		Standard
Switch Function		Off-Mom
Operating Temperature		-30°C ~ 85°C
Termination Style		PC Pin
Actuator Type		Round, Plunger
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - AC		20 V
Voltage Rating - DC		20 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TP11SH8ABE
Datasheets		TP Series_SH, SH8, SH9

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 2511

Can ship immediately.
