TMCS1123A5AQDVGR _ Current Sensors_Sensors, Transducers

Part Number	TMCS1123A5AQDVGR
Manufacturer	Texas Instruments
Other Part Numbers	296-TMCS1123A5AQDVGRTR-ND 296-TMCS1123A5AQDVGRCT-ND 296-TMCS1123A5AQDVGRDKR-ND 296-TMCS1123A5AQDVGRDKR 296-TMCS1123A5AQDVGRTR 296-TMCS1123A5AQDVGRCT
Description	1100V REINFORCED ISOLATION, 75AR

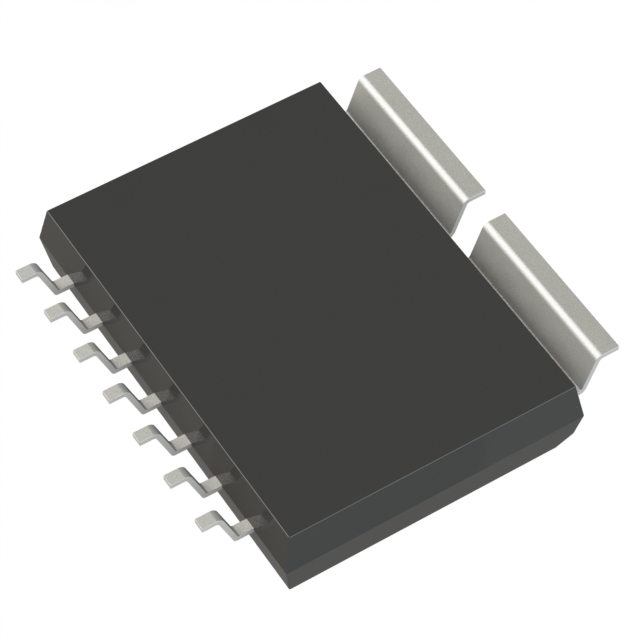

Detailed Description	Current Sensor 16A 1 Channel Hall Effect Bidirectional 10-SOIC (0.295", 7.50mm Width)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Sensors, Transducers Current Sensors
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		10-SOIC (0.295", 7.50mm Width)
Polarization		Bidirectional
Sensitivity		150mV/A
Mounting Type		Surface Mount
Output		Analog Voltage
Frequency		250kHz
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		3V ~ 5.5V
Response Time		1µs
Sensor Type		Hall Effect
Linearity		±0.1%
For Measuring		AC/DC
Current - Supply (Max)		80A
Current - Sensing		16A
Supplier Device Package		10-SOIC
Number of Channels		1

RESOURCE TYPE		LINK
Datasheets		TMCS1123A5AQDVGR

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
