TMCS1101A1UQDR _ Current Sensors_Sensors, Transducers

Part Number	TMCS1101A1UQDR
Manufacturer	Texas Instruments
Other Part Numbers	296-TMCS1101A1UQDRTR-ND 296-TMCS1101A1UQDRCT-ND 296-TMCS1101A1UQDRDKR-ND 296-TMCS1101A1UQDRTR 296-TMCS1101A1UQDRDKR 296-TMCS1101A1UQDRCT
Description	CURRENT SENSOR
Detailed Description	Current Sensor 1 Channel Hall Effect Unidirectional 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Sensors, Transducers Current Sensors
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

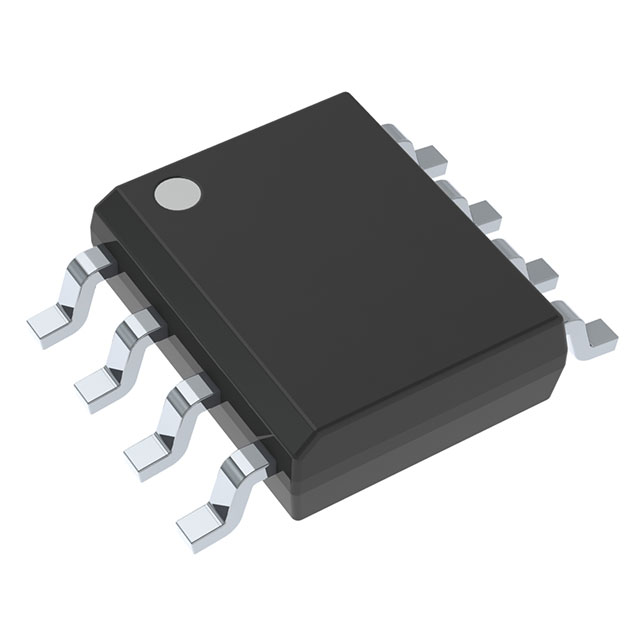

Package / Case		8-SOIC (0.154", 3.90mm Width)
Polarization		Unidirectional
Sensitivity		50mV/A
Mounting Type		Surface Mount
Output		Ratiometric, Voltage
Frequency		80kHz
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		3V ~ 5.5V
Response Time		6.5µs
Sensor Type		Hall Effect
Linearity		±0.05%
For Measuring		AC/DC
Current - Supply (Max)		6mA
Supplier Device Package		8-SOIC
Number of Channels		1

RESOURCE TYPE		LINK
Datasheets		TMCS1101A1UQDR

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
RoHS Status		Not applicable
