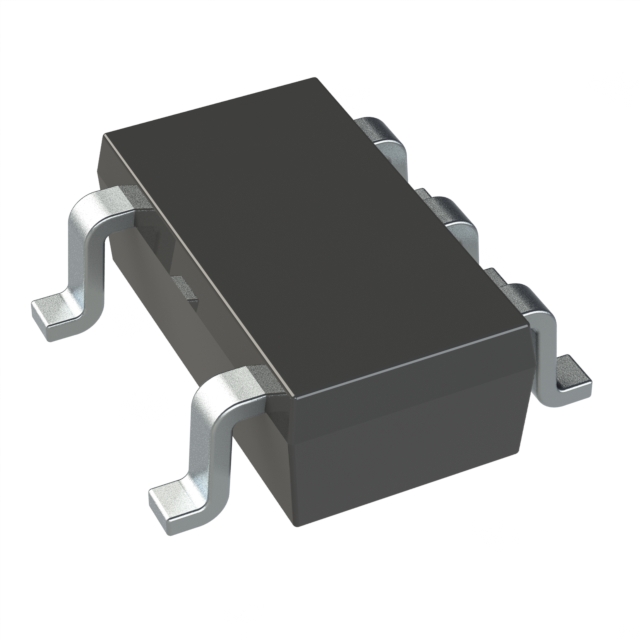

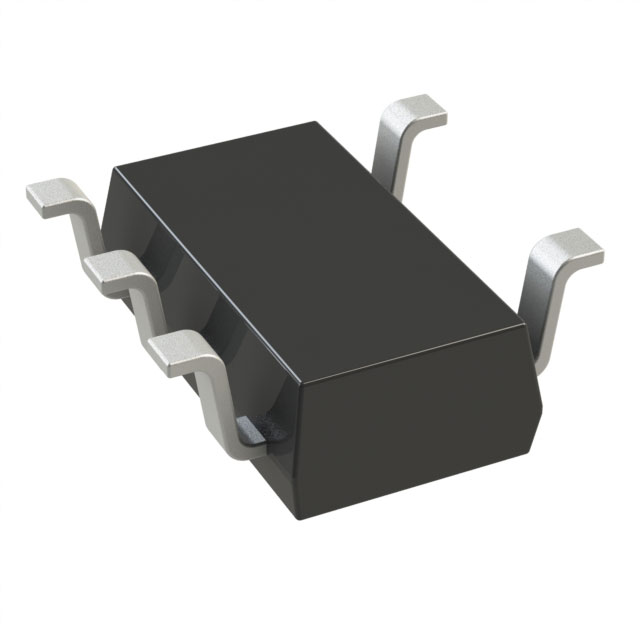

TMAG5110B2AQDBVRQ1

TMAG5110B2AQDBVRQ1

Part Number	TMAG5110B2AQDBVRQ1
Manufacturer	Texas Instruments
Other Part Numbers	296-TMAG5110B2AQDBVRQ1TR-ND 296-TMAG5110B2AQDBVRQ1CT-ND 296-TMAG5110B2AQDBVRQ1DKR-ND 296-TMAG5110B2AQDBVRQ1CT 296-TMAG5110B2AQDBVRQ1TR 296-TMAG5110B2AQDBVRQ1DKR
Description	TMAG5110-Q1
Detailed Description	Digital Switch Latch Open Drain Hall Effect SOT-23-5
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Magnetic Sensors Switches (Solid State)
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		SC-74A, SOT-753
Output Type		Open Drain
Polarization		North Pole, South Pole
Mounting Type		Surface Mount
Function		Latch
Operating Temperature		-40°C ~ 125°C (TA)
Voltage - Supply		2.5V ~ 38V
Technology		Hall Effect
Sensing Range		2.6mT Trip, -2.6mT Release
Current - Output (Max)		10mA
Current - Supply (Max)		8mA
Supplier Device Package		SOT-23-5
Test Condition		-40°C ~ 125°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TMAG5110B2AQDBVRQ1
Datasheets		SOT devices Marking 05//Feb/2024

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 35858

Can ship immediately.
