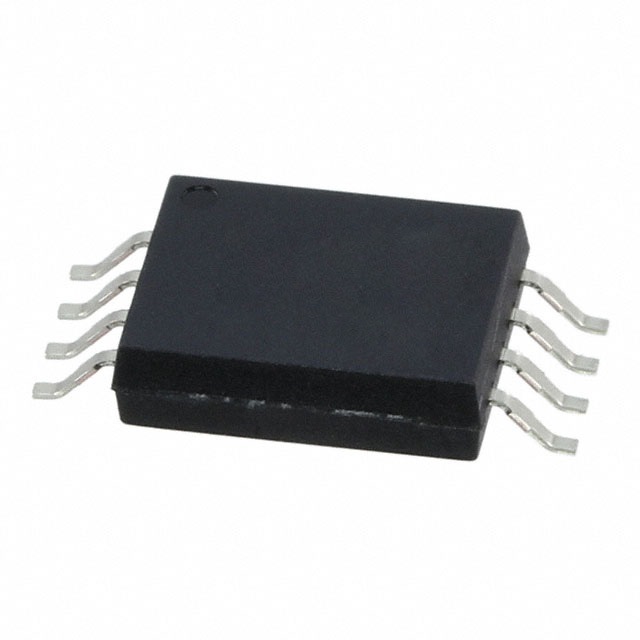

TLP7820(TP4,E

TLP7820(TP4,E

Part Number	TLP7820(TP4,E
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TLP7820(TP4ETR-ND TLP7820(TP4ECT-ND TLP7820(TP4EDKR-ND TLP7820(TL,E(O TLP7820(TP4ECT TLP7820(TLETR TLP7820(TP4E TLP7820(TP4EDKR TLP7820(TLECT TLP7820(TP4,E(O TLP7820(TL,E TLP7820(TLEDKR-ND TLP7820(TLECT-ND TLP7820(TP4ETR TLP7820(TLEDKR TLP7820(TLETR-ND
Description	IC OPAMP ISOLATION 1 CIRCUIT 8SO
Detailed Description	Isolation Amplifier 1 Circuit Differential 8-SO
Manufacturer Standard Lead Time	36 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SOIC (0.295", 7.50mm Width)
Output Type		Differential
Mounting Type		Surface Mount
Amplifier Type		Isolation
Operating Temperature		-40°C ~ 105°C
Current - Supply		12mA
Current - Input Bias		5.5 nA
Voltage - Input Offset		900 µV
Supplier Device Package		8-SO
Number of Circuits		1
-3db Bandwidth		230 kHz
Voltage - Supply Span (Min)		4.5 V
Voltage - Supply Span (Max)		5.5 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TLP7820(TP4,E

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		5A991B1
HTSUS		8542.33.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5121

Can ship immediately.
