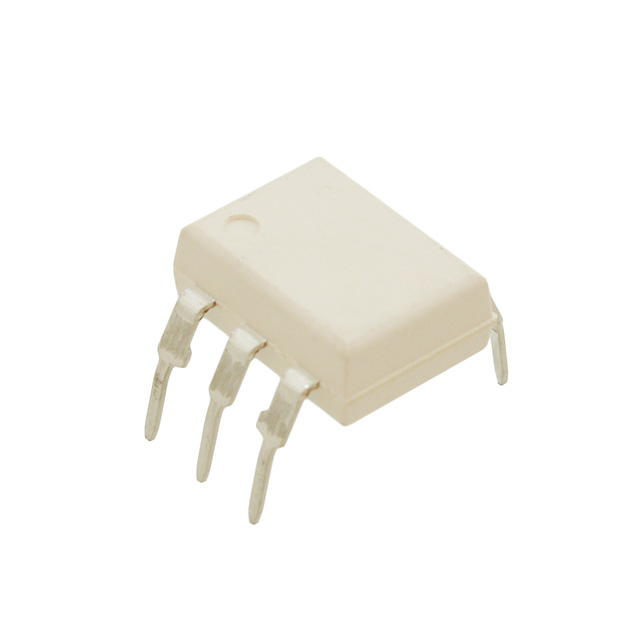

TLP748J(F) _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	TLP748J(F)
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TLP748JF-ND TLP748JF TLP748J (F)
Description	OPTOISOLATOR 4KV SCR 6DIP
Detailed Description	Optoisolator SCR Output 4000Vrms 1 Channel 6-DIP
Datasheet	Datasheet

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tube
Part Status		Active
Package / Case		6-DIP (0.400", 10.16mm)
Output Type		SCR
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.15V
Voltage - Isolation		4000Vrms
Approval Agency		BSI, SEMKO, UR
Current - Hold (Ih)		1mA
Turn On Time		15µs
Supplier Device Package		6-DIP
Zero Crossing Circuit		No
Static dV/dt (Min)		5V/µs
Current - LED Trigger (Ift) (Max)		10mA
Number of Channels		1
Current - On State (It (RMS)) (Max)		150 mA
Voltage - Off State		600 V
Current - DC Forward (If) (Max)		50 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
