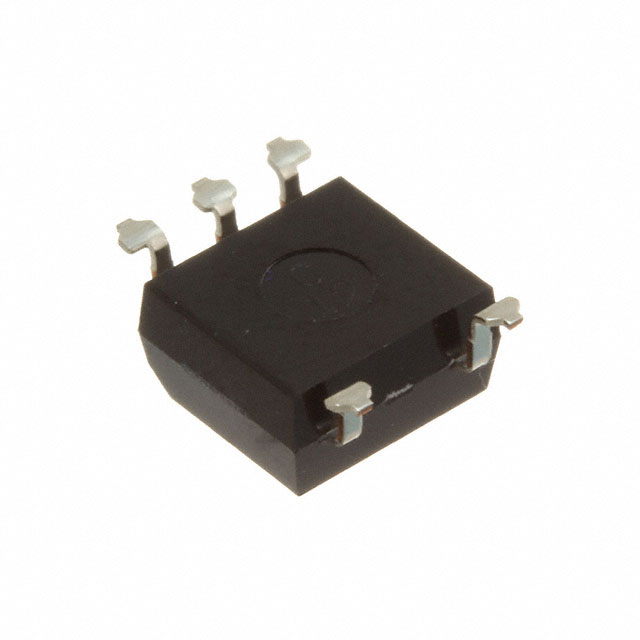

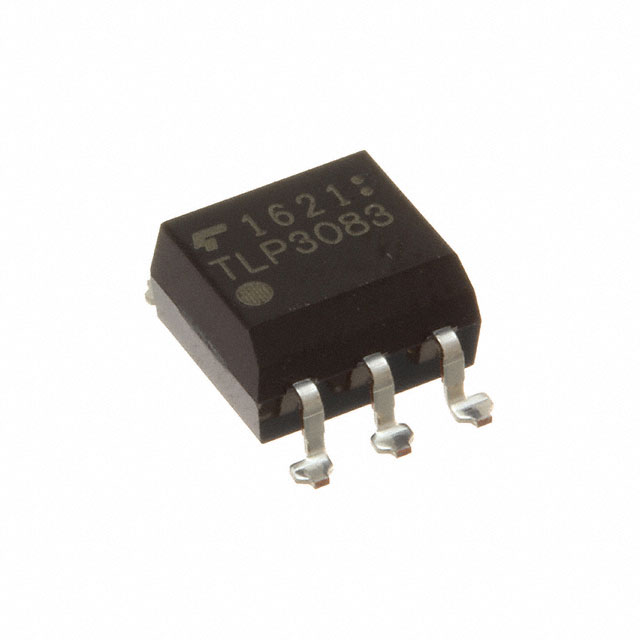

TLP3083(TP1,F _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	TLP3083(TP1,F
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TLP3083(TP1FTR-ND TLP3083(TP1FCT-ND TLP3083(TP1FDKR-ND TLP3083(TP1FTR TLP3083(TP1FDKR TLP3083(LF1,F(O TLP3083(TP1,F(O TLP3083(TP1FCT
Description	OPTOISO 5KV TRIAC 6SMD
Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-SO, 5 Lead
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		6-SMD (5 Leads), Gull Wing
Output Type		Triac
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.15V
Voltage - Isolation		5000Vrms
Approval Agency		CQC, CSA, cUL, UL
Current - Hold (Ih)		600µA (Typ)
Supplier Device Package		6-SO, 5 Lead
Zero Crossing Circuit		Yes
Static dV/dt (Min)		2kV/µs (Typ)
Current - LED Trigger (Ift) (Max)		5mA
Number of Channels		1
Current - On State (It (RMS)) (Max)		100 mA
Voltage - Off State		800 V
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		TLP3083(TP1,F

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
