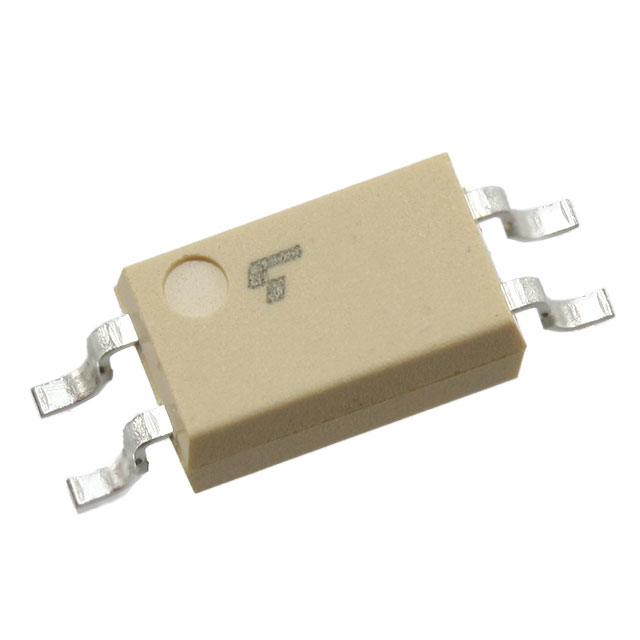

TLP291(GB-TP,SE _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	TLP291(GB-TP,SE
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TLP291(GB-TPSETR-ND TLP291(GB-TPSECT-ND TLP291(GB-TPSEDKR-ND TLP291(GB-TPSECT TLP291(GB-TP,SE(T TLP291(GB-TPSE(TDKR-ND TLP291(GB-TPSE(TCT TLP291(GB-TPSEDKR TLP291(GB-TPSE(TDKR TLP291(GB-TPSETR TLP291(GB-TP,SETR TLP291(GB-TPSE(TTR-ND TLP291(GB-TPSE(TCT-ND TLP291GBTPSET TLP291(GB-TPSE(TTR TLP291GBTPSE
Description	OPTOISOLATOR 3.75KV TRANS 4-SO
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SO
Manufacturer Standard Lead Time	48 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SOIC (0.179", 4.55mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.25V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		3750Vrms
Current Transfer Ratio (Min)		100% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		600% @ 5mA
Supplier Device Package		4-SO
Voltage - Output (Max)		80V
Turn On / Turn Off Time (Typ)		3µs, 3µs
Rise / Fall Time (Typ)		2µs, 3µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
