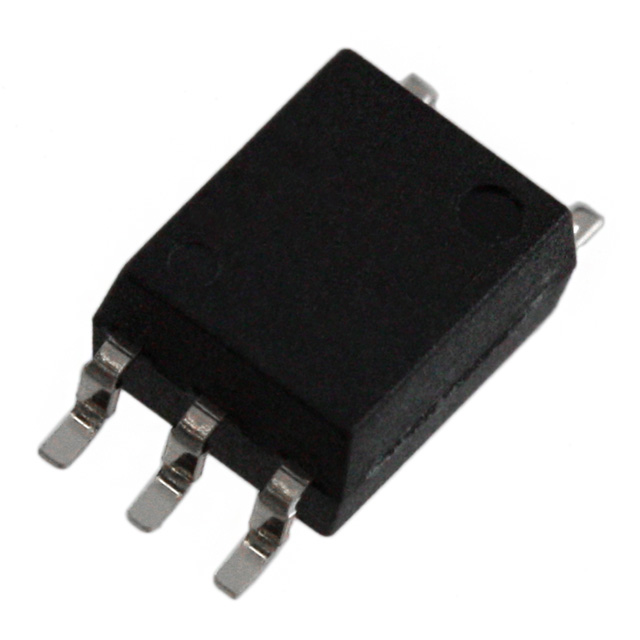

TLP2358(TPL,E) _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	TLP2358(TPL,E)
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	264-TLP2358(TPLE)TR-ND 264-TLP2358(TPLE)CT-ND 264-TLP2358(TPLE)DKR-ND 264-TLP2358(TPL,E)DKR-ND TLP2358(TPLE)-ND 264-TLP2358(TPLE)DKR 264-TLP2358(TPL,E)DKR TLP2358(TPLE) 264-TLP2358(TPL,E)CT-ND 264-TLP2358(TPLE)CT 264-TLP2358(TPL,E)CT 264-TLP2358(TPLE)TR
Description	X36 PB-F PHOTOCOUPLER
Detailed Description	Logic Output Optoisolator Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 6-SO, 5 Lead
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		6-SOIC (0.179", 4.55mm Width), 5 Leads
Output Type		Push-Pull, Totem Pole
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		3V ~ 20V
Voltage - Forward (Vf) (Typ)		1.55V
Input Type		DC
Voltage - Isolation		3750Vrms
Current - DC Forward (If) (Max)		20mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		6-SO, 5 Lead
Rise / Fall Time (Typ)		15ns, 12ns
Common Mode Transient Immunity (Min)		20kV/µs
Propagation Delay tpLH / tpHL (Max)		250ns, 250ns
Number of Channels		1
Current - Output / Channel		25 mA

RESOURCE TYPE		LINK
Datasheets		TLP2358(TPL,E)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
