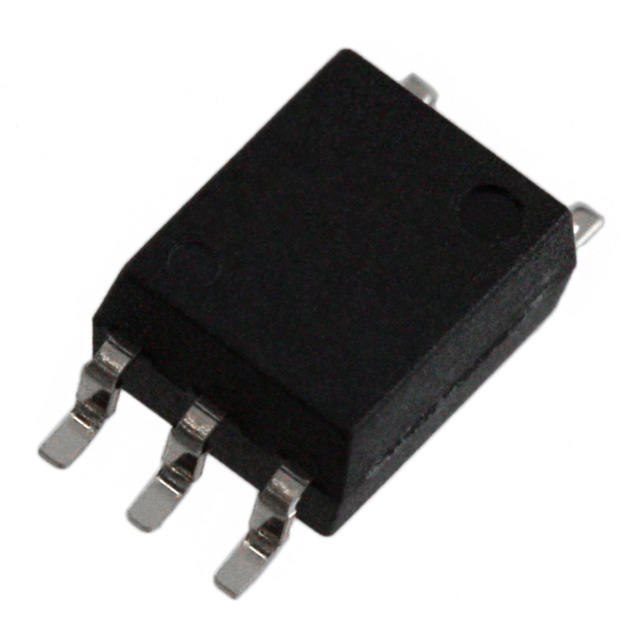

TLP116A(E _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	TLP116A(E
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TLP116A(E-ND TLP116A(E(O TLP116A(E) TLP116A(E)-ND TLP116AE TLP116A(E(T TLP116AE-ND
Description	OPTOISO 3.75KV PUSH PULL SO6-5
Detailed Description	Logic Output Optoisolator 20MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 6-SO, 5 Lead

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tube
Part Status		Last Time Buy
Package / Case		6-SOIC (0.179", 4.55mm Width), 5 Leads
Output Type		Push-Pull, Totem Pole
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.58V
Data Rate		20MBd
Input Type		DC
Voltage - Isolation		3750Vrms
Current - DC Forward (If) (Max)		20mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		6-SO, 5 Lead
Rise / Fall Time (Typ)		15ns, 15ns
Common Mode Transient Immunity (Min)		10kV/µs
Propagation Delay tpLH / tpHL (Max)		60ns, 60ns
Number of Channels		1
Current - Output / Channel		10 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		5A991
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
