TLHR4201

Part Number
TLHR4201
Manufacturer Vishay Semiconductor - Opto Division
Other Part Numbers
TLHR4201-ND
TLHR4201CT
TLHR4201CT-ND
TLHR4201TB-ND
TLHR4201TBINACTIVE
TLHR4201TB

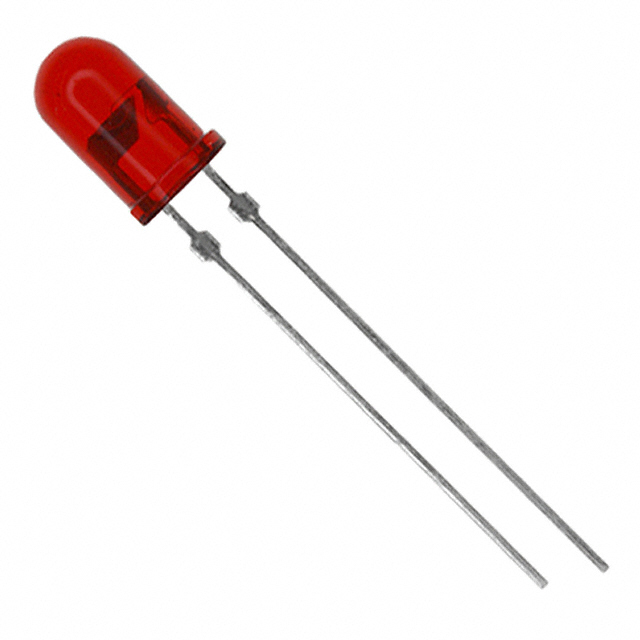

Description LED RED CLEAR T-1 T/H
Detailed Description Red 619nm LED Indication - Discrete 2V Radial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay Semiconductor - Opto Division
Series
TLH.42
Packaging
Bulk
Part Status Obsolete
Package / Case Radial
Color Red
Mounting Type Through Hole
Millicandela Rating 10mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Current - Test 10mA
Viewing Angle 44°
Height (Max) 6.10mm
Wavelength - Peak 635nm
Wavelength - Dominant 619nm
Supplier Device Package T-1
Lens Transparency Clear
Lens Style Round with Domed Top
Lens Size 3mm, T-1

Documents & Media

RESOURCE TYPE LINK
Datasheets TLHR4201
Datasheets OMV-767-2014-Rev-0 22/Jul/2014

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
