TLE4726GXUMA1

Part Number
TLE4726GXUMA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
TLE4726GXUMA1TR-ND
TLE4726GXUMA1CT-ND
TLE4726GXUMA1DKR-ND
TLE4726G
TLE4726GXUMA1DKR
SP000306733
TLE4726GT
TLE4726GXUMA1CT
TLE4726G-ND
TLE4726GNT
2156-TLE4726GXUMA1
SP000011863
TLE4726GXUMA1TR
IFEINFTLE4726GXUMA1
Description IC MTR DRV BIPOLR 4.5-6.5V 24DSO
Detailed Description Bipolar Motor Driver Bipolar Parallel PG-DSO-24-13
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete

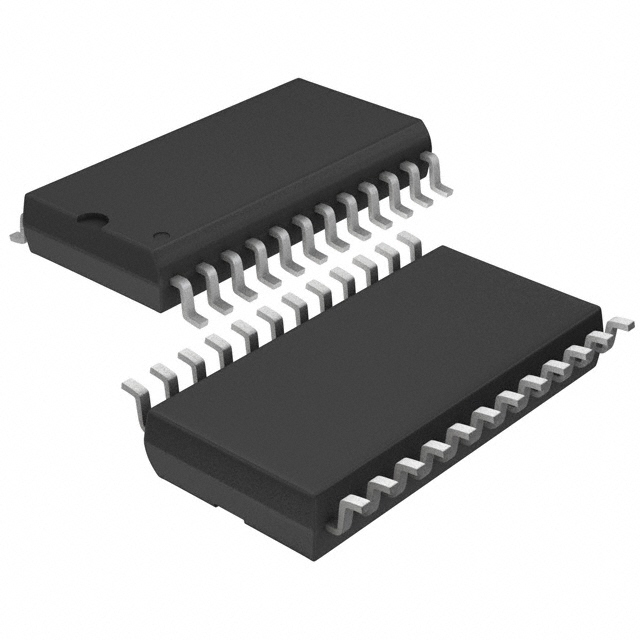

Package / Case 24-SOIC (0.295", 7.50mm Width)
Mounting Type Surface Mount
Function Driver - Fully Integrated, Control and Power Stage
Current - Output 800mA
Interface Parallel
Operating Temperature -25°C ~ 125°C (TJ)
Output Configuration Half Bridge (4)
Voltage - Supply 4.5V ~ 6.5V
Applications General Purpose
Technology Bipolar
Voltage - Load 5V ~ 50V
Supplier Device Package PG-DSO-24-13
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Step Resolution 1, 1/2, 1/4

Documents & Media

RESOURCE TYPE LINK
Datasheets TLE4726GXUMA1
Datasheets Mult Dev Label Chgs 11/Jan/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
