TLC69661QPWPRQ1

Part Number
TLC69661QPWPRQ1
Manufacturer Texas Instruments
Other Part Numbers
296-TLC69661QPWPRQ1TR-ND
296-TLC69661QPWPRQ1TR
Description IC
Detailed Description LED Driver IC 16 Output Linear Constant Current PWM Dimming 60mA 28-HTSSOP
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer Texas Instruments
Series
Packaging
Tape & Reel (TR)
Part Status Active

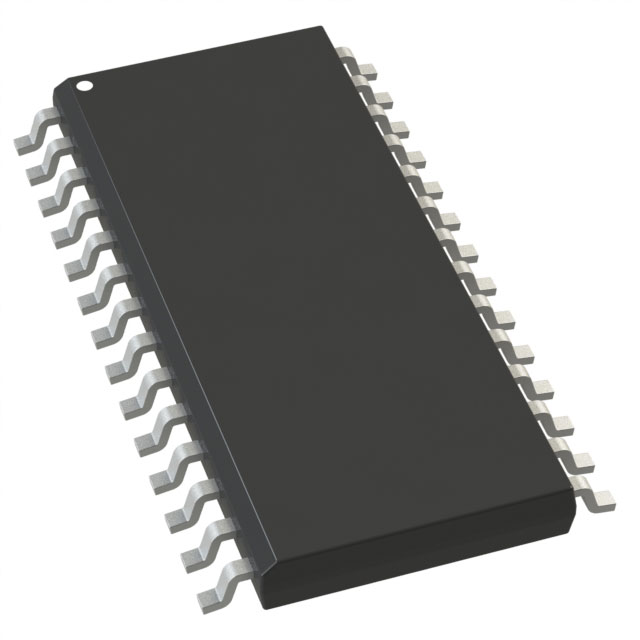

Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
Voltage - Output 50V
Mounting Type Surface Mount
Number of Outputs 16
Type Linear
Operating Temperature -40°C ~ 125°C (TA)
Applications Backlight
Current - Output / Channel 60mA
Internal Switch(s) No
Topology Constant Current
Supplier Device Package 28-HTSSOP
Dimming PWM
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Grade Automotive
Qualification AEC-Q100

Documents & Media

RESOURCE TYPE LINK
Datasheets TLC69661QPWPRQ1
Datasheets TLC696x1-Q1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION

Available To Order
