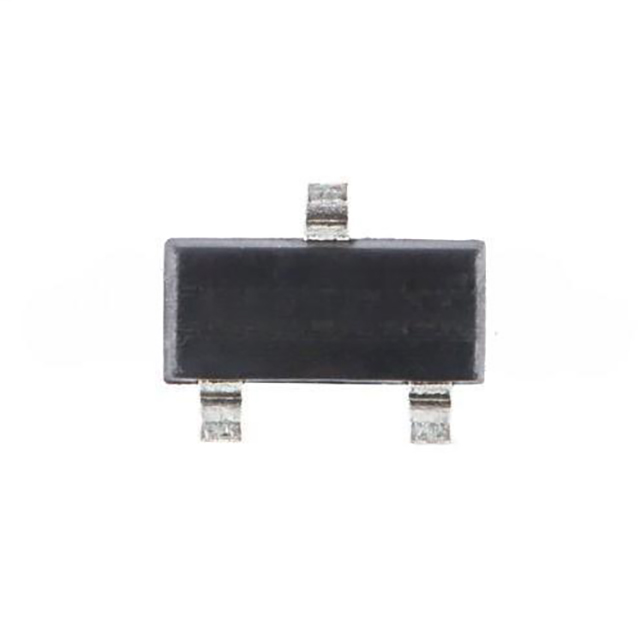

TL431S

TL431S

Part Number	TL431S
Manufacturer	UMW
Other Part Numbers	4518-TL431STR-ND 4518-TL431SCT-ND 4518-TL431SDKR-ND 4518-TL431STR 4518-TL431SDKR 4518-TL431SCT
Description	2.495V~36V 500A 100MA ADJUSTABLE
Detailed Description	Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±0.5% 100 mA SOT-89
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Reference
Manufacturer		UMW
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±0.5%
Package / Case		TO-243AA
Temperature Coefficient		50ppm/°C
Output Type		Adjustable
Mounting Type		Surface Mount
Reference Type		Shunt
Operating Temperature		-40°C ~ 85°C
Supplier Device Package		SOT-89
Voltage - Output (Min/Fixed)		2.495V
Current - Cathode		500 µA
Current - Output		100 mA
Voltage - Output (Max)		36 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		UTD REACH SGS 223 Jan 2022 Package

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0070
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 460

Can ship immediately.
