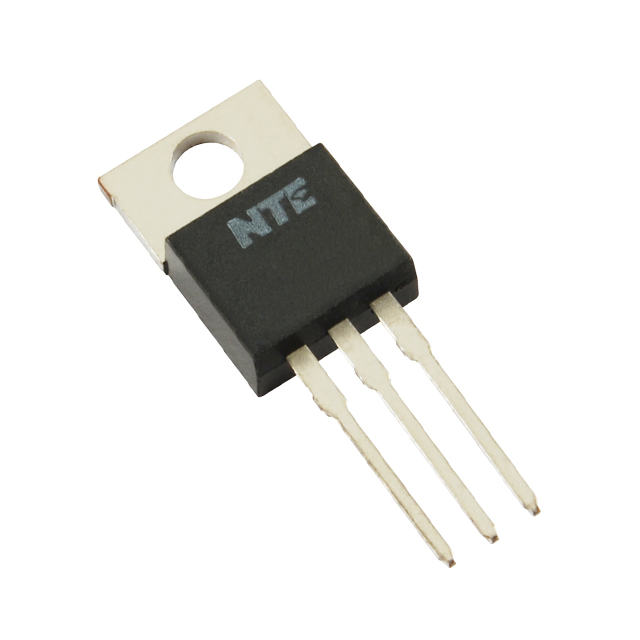

TIP42B

Part Number
TIP42B
Manufacturer NTE Electronics, Inc
Other Part Numbers
2368-TIP42B-ND
2368-TIP42B
Description TRANS PNP 80V 6A TO220
Detailed Description Bipolar (BJT) Transistor PNP 80 V 6 A 3MHz 2 W Through Hole TO-220
Datasheet Datasheet

Product Attributes

Category
Manufacturer NTE Electronics, Inc
Series
Packaging
Bag
Part Status Active
Package / Case TO-220-3
Mounting Type Through Hole
Transistor Type PNP
Operating Temperature -65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic 1.5V @ 600mA, 6A
Current - Collector Cutoff (Max) 700µA
DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 300mA, 4V
Frequency - Transition 3MHz
Supplier Device Package TO-220
Current - Collector (Ic) (Max) 6 A
Voltage - Collector Emitter Breakdown (Max) 80 V
Power - Max 2 W

Documents & Media

RESOURCE TYPE LINK
Datasheets TIP42B
Datasheets REACH Statement
Datasheets RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS non-compliant
