TIP33A

Part Number
TIP33A
Manufacturer Motorola
Other Part Numbers
2156-TIP33A-MO-ND
2156-TIP33A-MO
ONSMOTTIP33A
Description TRANS NPN 60V 10A TO218
Detailed Description Bipolar (BJT) Transistor NPN 60 V 10 A 3MHz 80 W Through Hole TO-218

Product Attributes

Category
Manufacturer Motorola
Series
Packaging
Box
Part Status Obsolete

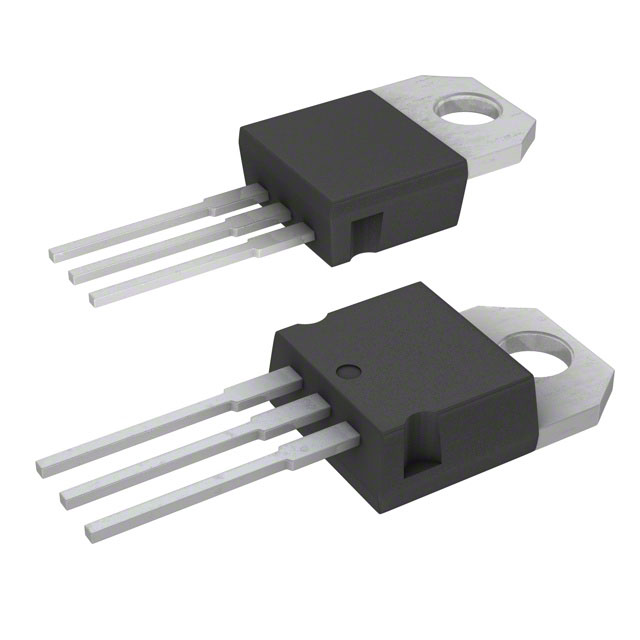

Package / Case TO-218-3
Mounting Type Through Hole
Transistor Type NPN
Operating Temperature -65°C ~ 150°C (TJ)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 3A, 4V
Frequency - Transition 3MHz
Supplier Device Package TO-218
Current - Collector (Ic) (Max) 10 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Power - Max 80 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
