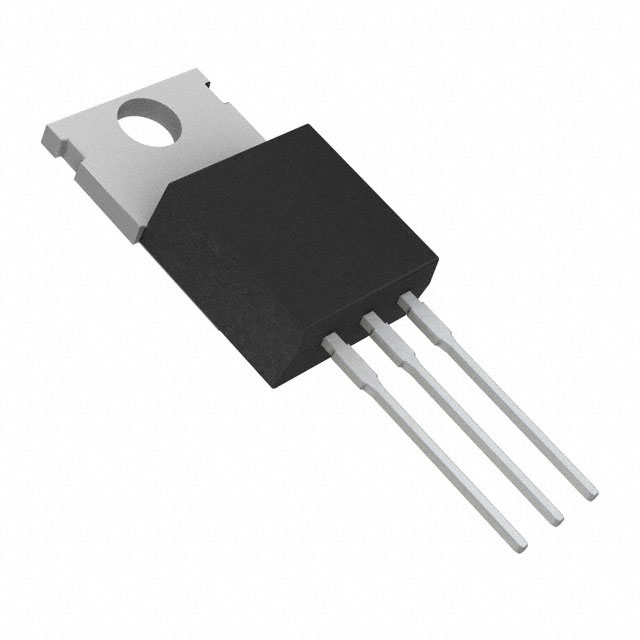

TIP112G

Part Number
TIP112G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
TIP112GOS-ND
TIP112GOS
2832-TIP112G
ONSONSTIP112G
2156-TIP112G-OS
Description TRANS NPN DARL 100V 2A TO220
Detailed Description Bipolar (BJT) Transistor NPN - Darlington 100 V 2 A 2 W Through Hole TO-220
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tube
Part Status Active
Package / Case TO-220-3
Mounting Type Through Hole
Transistor Type NPN - Darlington
Operating Temperature -65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic 2.5V @ 8mA, 2A
Current - Collector Cutoff (Max) 2mA
DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 1A, 4V
Supplier Device Package TO-220
Current - Collector (Ic) (Max) 2 A
Voltage - Collector Emitter Breakdown (Max) 100 V
Power - Max 2 W

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 719

Can ship immediately.
