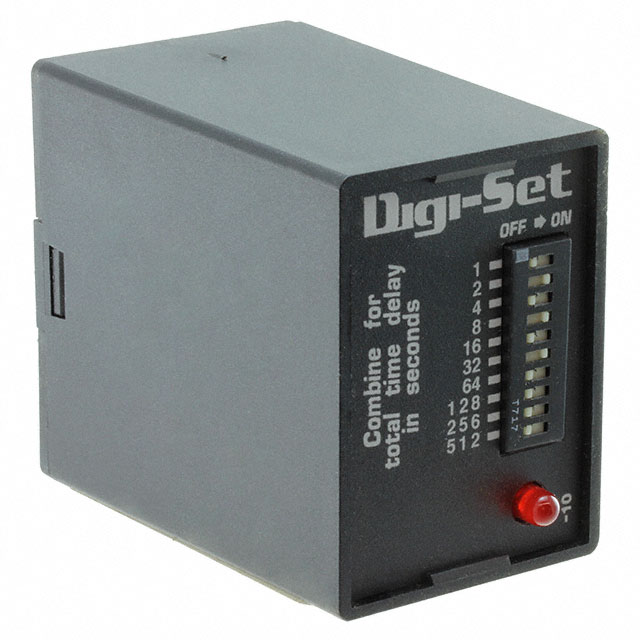

TDS230AL

TDS230AL

Part Number	TDS230AL
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	F10676-ND -1024-TDS230AL F10676
Description	RELAY TIME DEL 1023SEC 10A 120V
Detailed Description	One Shot Time Delay Relay SPDT (1 Form C) 1 Sec ~ 1023 Sec Delay 10A @ 120/240VAC Socketable
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Industrial Automation and Controls Time Delay Relays
Manufacturer		Wickmann / Littelfuse
Series		TDS
Packaging		Bulk
Part Status		Active
Delay Time		1 Sec ~ 1023 Sec
Mounting Type		Socketable
Function		One Shot
Circuit		SPDT (1 Form C)
Termination Style		Plug In, 8 Pin (Octal)
Voltage - Supply		230VAC
Contact Rating @ Voltage		10A @ 120/240VAC
Relay Type		Mechanical Relay
Timing Adjustment Method		DIP Switches
Timing Initiate Method		Input Voltage, Trigger Signal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TDS230AL
Datasheets		Multiple Devices Product Improvement 24/Jul/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		9107.00.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1

Can ship immediately.
