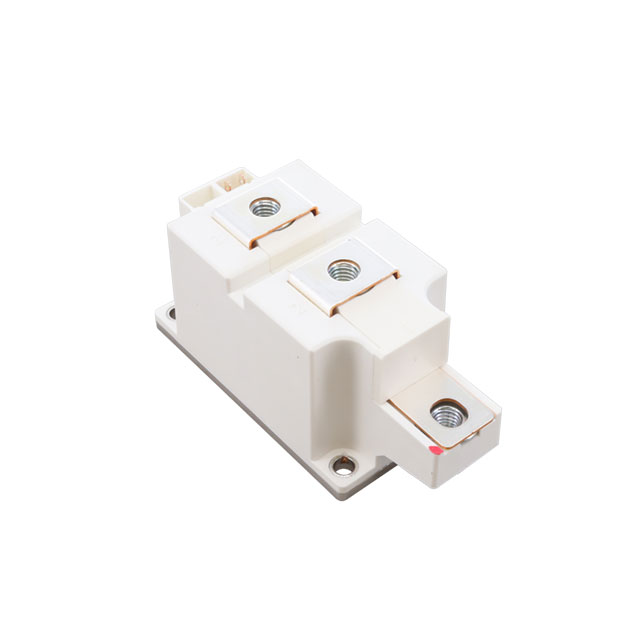

TD320N16SOFHPSA1

Part Number
TD320N16SOFHPSA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
TD320N16SOFHPSA1-ND
TD320N16SOF
2156-TD320N16SOFHPSA1
TD320N16SOF-ND
SP001328716
IFEINFTD320N16SOFHPSA1
Description THYRISTOR MODULE 1600V 320A
Detailed Description SCR Module 1.6 kV 520 A Series Connection - SCR/Diode Chassis Mount Module
Manufacturer Standard Lead Time 52 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Tray
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Operating Temperature 130°C (TJ)
Structure Series Connection - SCR/Diode
Current - Hold (Ih) (Max) 150 mA
Current - Gate Trigger (Igt) (Max) 150 mA
Number of SCRs, Diodes 1 SCR, 1 Diode
Current - On State (It (AV)) (Max) 320 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - On State (It (RMS)) (Max) 520 A
Voltage - Off State 1.6 kV

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3

Can ship immediately.
