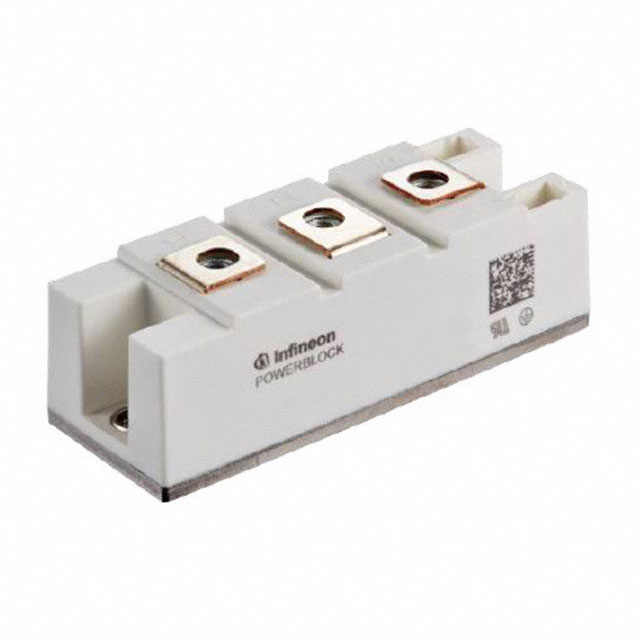

TD190N18SOFHPSA1

TD190N18SOFHPSA1

Part Number	TD190N18SOFHPSA1
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	448-TD190N18SOFHPSA1-ND 448-TD190N18SOFHPSA1 TD190N18SOF SP001713516 TD190N18SOFHPSA1-ND
Description	SCR MODULE 1800V 275A MODULE
Detailed Description	SCR Module 1.8 kV 275 A Series Connection - SCR/Diode Chassis Mount Module
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs - Modules
Manufacturer		IR (Infineon Technologies)
Series
Packaging		Tray
Part Status		Active
Package / Case		Module
Mounting Type		Chassis Mount
Operating Temperature		-40°C ~ 125°C
Structure		Series Connection - SCR/Diode
Current - Hold (Ih) (Max)		200 mA
Current - Gate Trigger (Igt) (Max)		145 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		5200A @ 50Hz
Number of SCRs, Diodes		1 SCR, 1 Diode
Current - On State (It (AV)) (Max)		190 A
Voltage - Gate Trigger (Vgt) (Max)		2.5 V
Current - On State (It (RMS)) (Max)		275 A
Voltage - Off State		1.8 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TD190N18SOFHPSA1
Datasheets		Thyristor/Diode Module Label REV 1/Feb/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8

Can ship immediately.
