TCR15AG33,LF _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	TCR15AG33,LF
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TCR15AG33LFTR-ND TCR15AG33LFCT-ND TCR15AG33LFDKR-ND TCR15AG33LFTR TCR15AG33LF(S TCR15AG33LF TCR15AG33,LFTR TCR15AG33,LF(S TCR15AG33LFDKR TCR15AG33LFCT
Description	IC REG LINEAR 3.3V 1.5A 6WCSP
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A 6-WCSP (1.2x0.80)
Manufacturer Standard Lead Time	42 weeks

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		TCR15AG
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

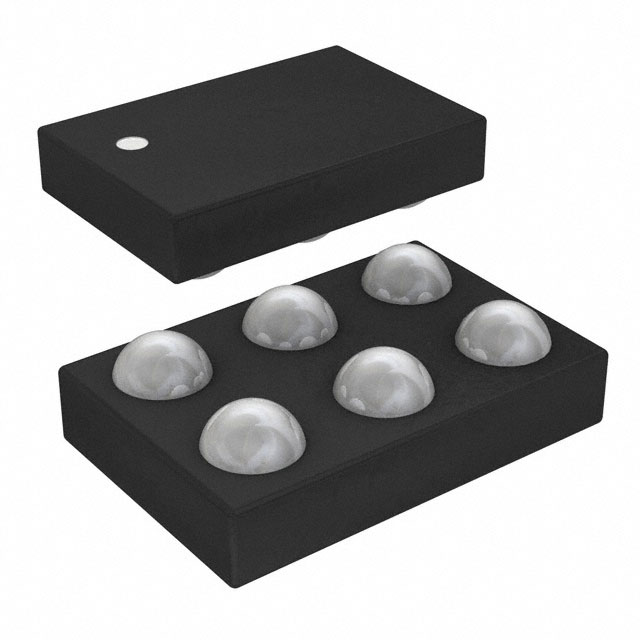

Package / Case		6-XFBGA, WLCSP
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		1.5A
Operating Temperature		-40°C ~ 85°C (TJ)
Output Configuration		Positive
Current - Quiescent (Iq)		40 µA
Voltage - Input (Max)		6V
Number of Regulators		1
Supplier Device Package		6-WCSP (1.2x0.80)
Voltage - Output (Min/Fixed)		3.3V
Control Features		Enable
PSRR		95dB ~ 60dB (1kHz)
Voltage Dropout (Max)		0.648V @ 1.5A
Protection Features		Current Limit, Thermal Shutdown, UVLO

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
