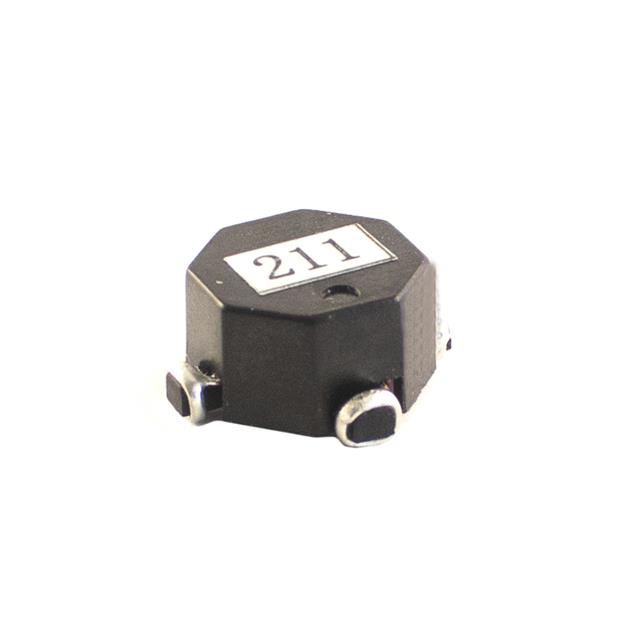

TCM3-211-RC

TCM3-211-RC

Part Number	TCM3-211-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-TCM3-211-RC-ND 3475-TCM3-211-RC
Description	CMC 217UH 2LN SMD
Detailed Description	217 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount DCR 26mOhm
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Allied Components International
Series
Packaging		Tray
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Size / Dimension		0.591" L x 0.441" W (15.00mm x 11.20mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-20°C ~ 125°C
Height (Max)		0.283" (7.20mm)
DC Resistance (DCR) (Max)		26mOhm
Inductance @ Frequency		217 µH @ 100 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TCM3-211-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
