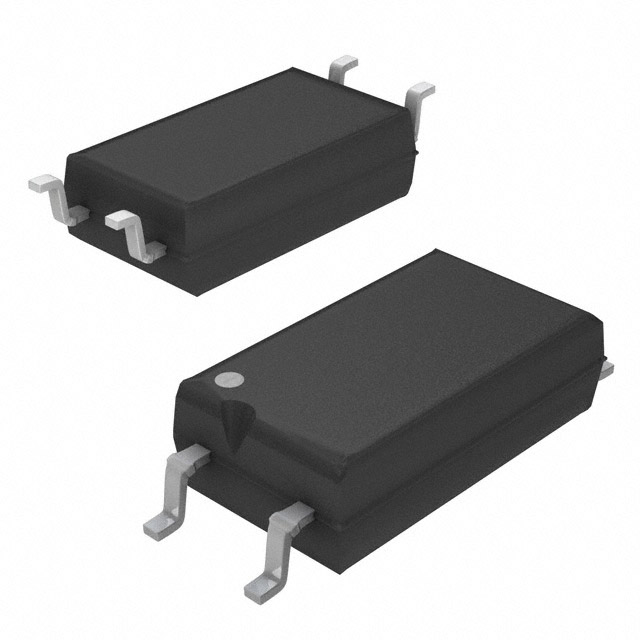

TCLT1018 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	TCLT1018
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	TCLT1018TR-ND TCLT1018CT-ND TCLT1018DKR-ND TCLT1018CT TCLT1018DKR TCLT1018TR TCLT1018-ND
Description	OPTOISOLATOR 5KV TRANS SOP-6L4
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP
Manufacturer Standard Lead Time	6 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.25V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		130% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		260% @ 5mA
Supplier Device Package		4-SOP
Voltage - Output (Max)		70V
Turn On / Turn Off Time (Typ)		6µs, 5µs
Rise / Fall Time (Typ)		3µs, 4.7µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
