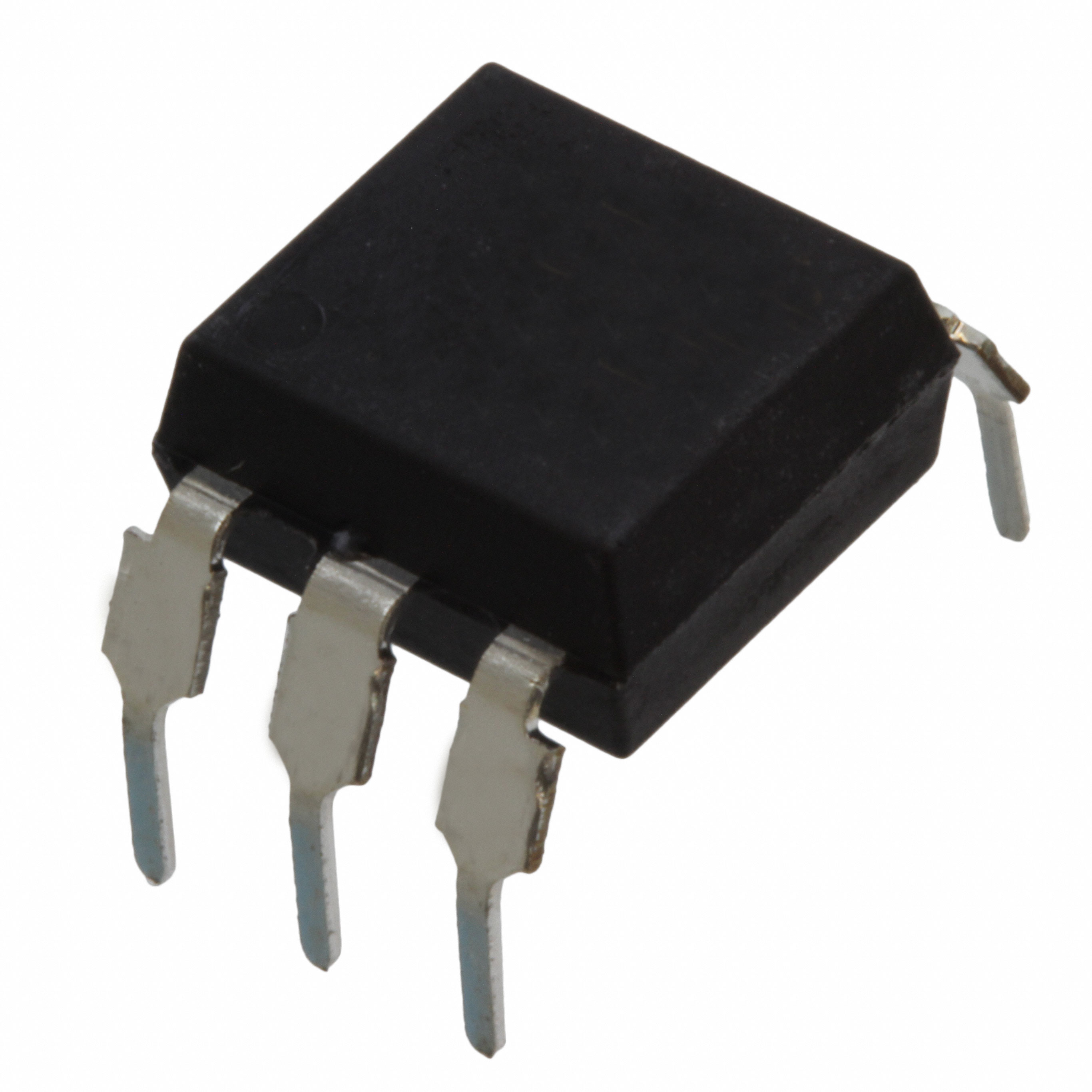

TCDT1102G _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	TCDT1102G
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	TCDT1102G-ND
Description	OPTOISOLATOR 5KV TRANS 6DIP
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 6-DIP
Manufacturer Standard Lead Time	12 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series
Packaging		Tube
Part Status		Active
Package / Case		6-DIP (0.400", 10.16mm)
Output Type		Transistor
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.25V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		63% @ 10mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		125% @ 10mA
Supplier Device Package		6-DIP
Voltage - Output (Max)		32V
Turn On / Turn Off Time (Typ)		11µs, 7µs
Rise / Fall Time (Typ)		7µs, 6.7µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
