TCAL9539RTWR

TCAL9539RTWR

Part Number	TCAL9539RTWR
Manufacturer	Texas Instruments
Other Part Numbers	296-TCAL9539RTWRTR-ND 296-TCAL9539RTWRCT-ND 296-TCAL9539RTWRDKR-ND 296-TCAL9539RTWRTR 296-TCAL9539RTWRDKR 296-TCAL9539RTWRCT
Description	16-BIT LOW-VOLTAGE IC-BUS AND SM
Detailed Description	I/O Expander 16 I2C, SMBus 1 MHz 24-WQFN (4x4)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Interface I/O Expanders
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		POR

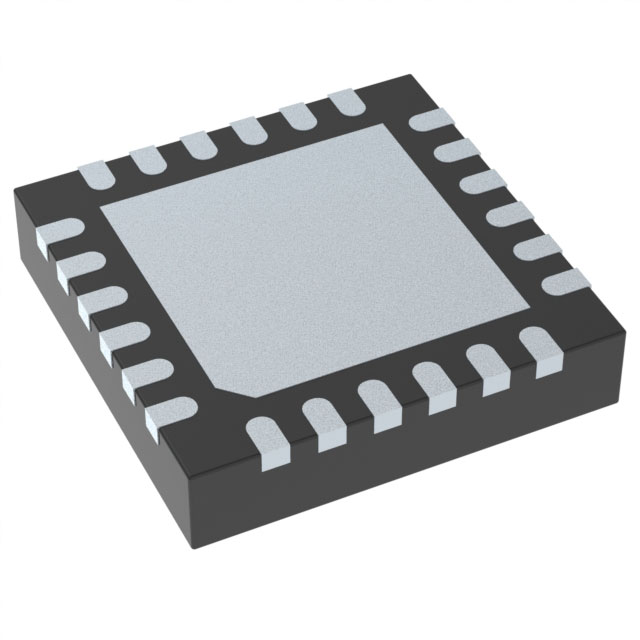

Package / Case		24-WFQFN Exposed Pad
Output Type		Open Drain, Push-Pull
Mounting Type		Surface Mount
Interface		I2C, SMBus
Number of I/O		16
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		1.08V ~ 3.6V
Clock Frequency		1 MHz
Interrupt Output		Yes
Supplier Device Package		24-WQFN (4x4)
Current - Output Source/Sink		10mA, 25mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TCAL9539RTWR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3788

Can ship immediately.
