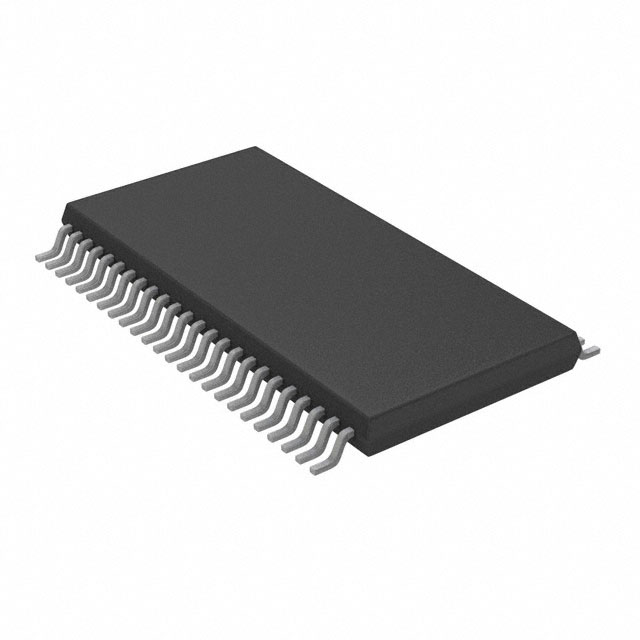

TC78S121FNG,EL

TC78S121FNG,EL

Part Number
TC78S121FNG,EL
Manufacturer Toshiba Electronic Devices and Storage Corporation
Other Part Numbers
TC78S121FNGELTR-ND
TC78S121FNGELCT-ND
TC78S121FNGELDKR-ND
TC78S121FNG(Z,EL)
TC78S121FNGELTR
TC78S121FNGELCT
TC78S121FNGELDKR
Description IC MOTOR DRIVER BIPOLAR 48HTSSOP
Detailed Description Bipolar Motor Driver Power MOSFET Parallel 48-HTSSOP
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Toshiba Electronic Devices and Storage Corporation
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Mounting Type Surface Mount
Function Driver - Fully Integrated, Control and Power Stage
Current - Output 2A
Interface Parallel
Operating Temperature -20°C ~ 150°C (TJ)
Output Configuration Half Bridge (8)
Voltage - Supply 4.5V ~ 5.5V
Applications General Purpose
Technology Power MOSFET
Voltage - Load 8V ~ 38V
Supplier Device Package 48-HTSSOP
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC

Documents & Media

RESOURCE TYPE LINK
Datasheets TC78S121FNG,EL

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
RoHS Status ROHS3 Compliant
