Part Number |
TC78B006FNG,EL
|
---|---|
Manufacturer | Toshiba Electronic Devices and Storage Corporation |
Other Part Numbers |
TC78B006FNGELTR-ND
TC78B006FNGELCT-ND
TC78B006FNGELDKR-ND
TC78B006FNGELTR
TC78B006FNGELDKR
TC78B006FNGELCT
TC78B006FNG(O,EL)
|
Description | IC MOTOR DRIVER 3.5V-16V 16SSOP |
Detailed Description | Motor Driver Power MOSFET PWM 16-SSOP |
Manufacturer Standard Lead Time | 16 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Toshiba Electronic Devices and Storage Corporation | |
Series | ||
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Active | |

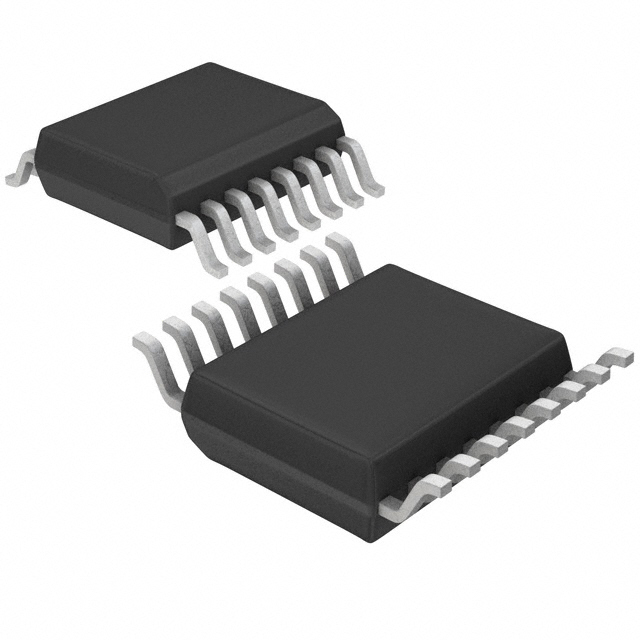

Package / Case | 16-LSSOP (0.173", 4.40mm Width) | |
Mounting Type | Surface Mount | |
Function | Controller - Commutation, Direction Management | |
Interface | PWM | |
Operating Temperature | -40°C ~ 105°C (TA) | |
Output Configuration | Pre-Driver - Half Bridge (2) | |
Voltage - Supply | 3.5V ~ 16V | |
Applications | General Purpose | |
Technology | Power MOSFET | |
Supplier Device Package | 16-SSOP | |
Motor Type - AC, DC | Brushless DC (BLDC) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | TC78B006FNG,EL |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
