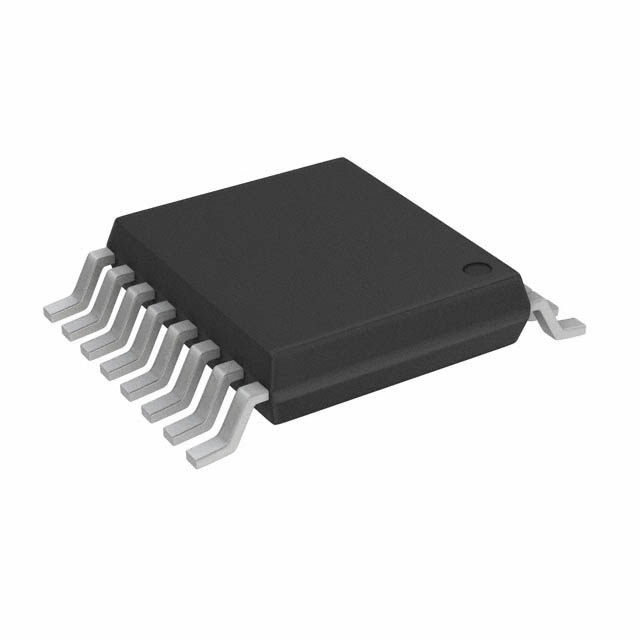

TC74HC4049AFTEL

TC74HC4049AFTEL

Part Number	TC74HC4049AFTEL
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TC74HC4049AFTELTR-ND TC74HC4049AFT(EL) TC74HC4049AFTELDKR TC74HC4049AFTELCT TC74HC4049AFTELTR
Description	IC BUFFER INVERT 6V 16TSSOP
Detailed Description	Buffer, Inverting 6 Element 1 Bit per Element Push-Pull Output 16-TSSOP

Product Attributes

Category		Integrated Circuits (ICs) Logic Buffers, Drivers, Receivers, Transceivers
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		74HC
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs
Package / Case		16-TSSOP (0.173", 4.40mm Width)
Output Type		Push-Pull
Mounting Type		Surface Mount
Number of Elements		6
Logic Type		Buffer, Inverting
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		2V ~ 6V
Number of Bits per Element		1
Current - Output High, Low		7.8mA, 7.8mA
Supplier Device Package		16-TSSOP

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

Available To Order

Not recommended for new design, minimums may apply.
