TC7109ACLW713 _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	TC7109ACLW713
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	TC7109ACLW713-ND TC7109ACLW713-NDR
Description	IC ADC 12BIT DUAL SLOPE 44PLCC
Detailed Description	12 Bit Analog to Digital Converter 1 Input 1 Dual Slope 44-PLCC (16.59x16.59)
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

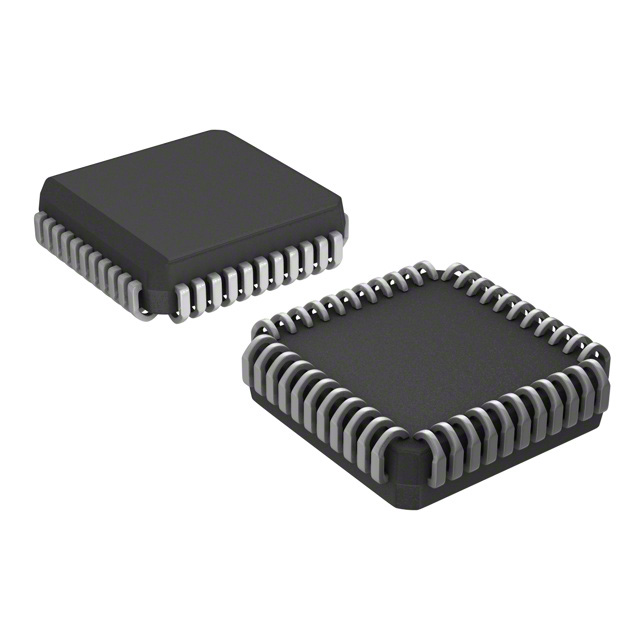

Package / Case		44-LCC (J-Lead)
Mounting Type		Surface Mount
Number of Bits		12
Configuration		ADC
Data Interface		Parallel
Reference Type		External
Operating Temperature		0°C ~ 70°C
Voltage - Supply, Analog		5V
Voltage - Supply, Digital		5V
Sampling Rate (Per Second)		30
Input Type		Differential
Number of Inputs		1
Supplier Device Package		44-PLCC (16.59x16.59)
Architecture		Dual Slope
Number of A/D Converters		1

RESOURCE TYPE		LINK
Datasheets		TC7109ACLW713
Datasheets		Analog and Interface Product Guide
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Lead Frame 22/Dec/2021
Datasheets		MBB/Label Chgs 16/Nov/2018
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		Development Tools Catalog

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
