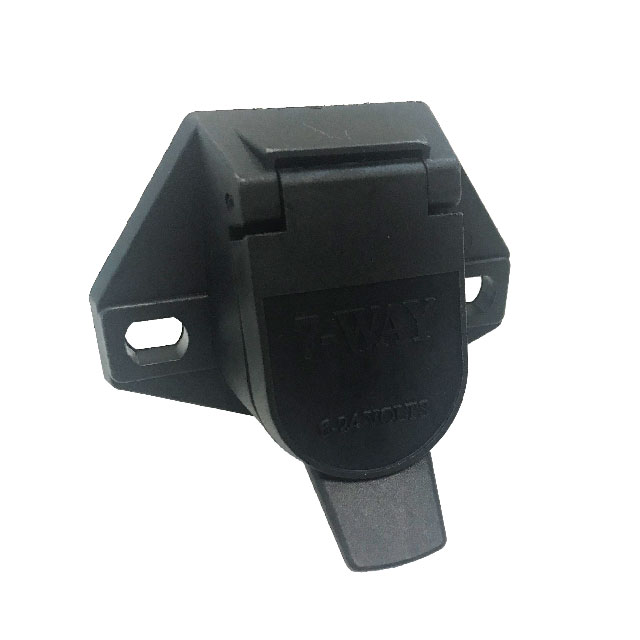

TC7-SE2-N _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	TC7-SE2-N
Manufacturer	Switch Components
Other Part Numbers	2299-TC7-SE2-N-ND 2299-TC7-SE2-N
Description	CONN RCPT MALE 7POS SET SCREW
Detailed Description	7 (6 + PE) Position Circular Connector Receptacle, Male Pins Set Screw
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Switch Components
Series		TC7
Packaging		Bulk
Part Status		Active
Features		Cap (Cover)
Connector Type		Receptacle, Male Pins
Color		Black
Mounting Type		Panel Mount
Shielding		Unshielded
Number of Positions		7 (6 + PE)
Orientation		Keyed
Applications		Automotive
Fastening Type		Push-Pull
Termination		Set Screw
Mounting Feature		Flange
Contact Material		Brass
Shell Material		Polyamide (PA), Nylon, Glass Filled
Insert Material		Polyamide (PA), Nylon, Glass Filled
Primary Material		Plastic

RESOURCE TYPE		LINK
Datasheets		TC7-SE2-N

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
