TC4429EMF

TC4429EMF

Part Number	TC4429EMF
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	TC4429EMF-ND TC4429EMF-NDR
Description	IC GATE DRVR LOW-SIDE 8DFN
Detailed Description	Low-Side Gate Driver IC Inverting 8-DFN-S (6x5)
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active

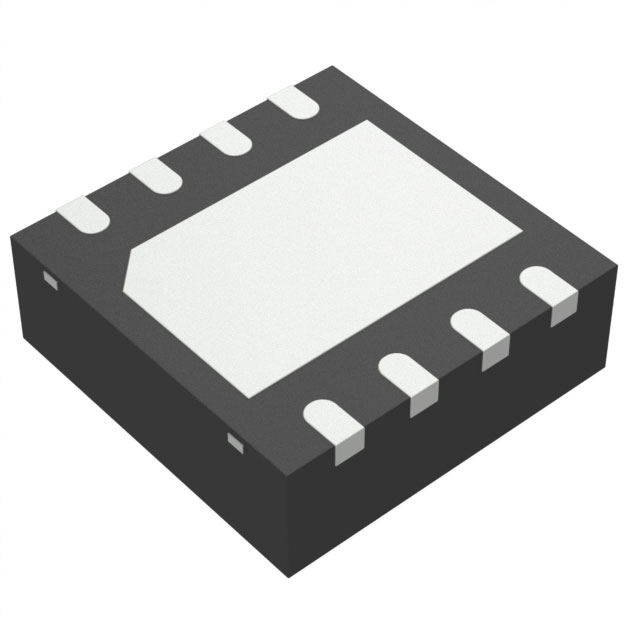

Package / Case		8-VDFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 150°C (TJ)
Voltage - Supply		4.5V ~ 18V
Input Type		Inverting
Supplier Device Package		8-DFN-S (6x5)
Rise / Fall Time (Typ)		25ns, 25ns
Channel Type		Single
Driven Configuration		Low-Side
Number of Drivers		1
Gate Type		N-Channel, P-Channel MOSFET
Logic Voltage - VIL, VIH		0.8V, 2.4V
Current - Peak Output (Source, Sink)		6A, 6A
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TC4429EMF
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
