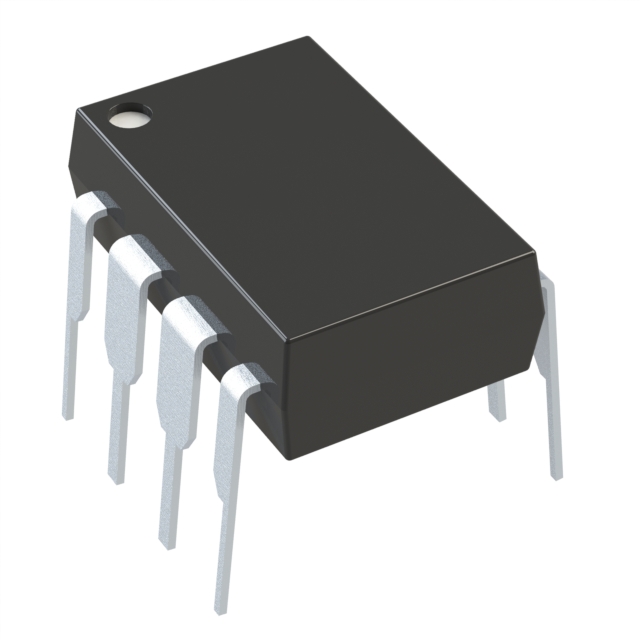

TC1427CPA

TC1427CPA

Part Number	TC1427CPA
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	TC1427CPA-ND TC1427CPA-NDR 158-1046 158-1046-ND
Description	IC GATE DRVR LOW-SIDE 8DIP
Detailed Description	Low-Side Gate Driver IC Non-Inverting 8-PDIP
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active
Package / Case		8-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Operating Temperature		0°C ~ 70°C (TA)
Voltage - Supply		4.5V ~ 16V
Input Type		Non-Inverting
Supplier Device Package		8-PDIP
Rise / Fall Time (Typ)		35ns, 25ns
Channel Type		Independent
Driven Configuration		Low-Side
Number of Drivers		2
Gate Type		N-Channel, P-Channel MOSFET
Logic Voltage - VIL, VIH		0.8V, 3V
Current - Peak Output (Source, Sink)		1.2A, 1.2A
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TC1427CPA
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 383

Can ship immediately.
