TBD62304AFNG,EL _ Power Distribution Switches, Load Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	TBD62304AFNG,EL
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TBD62304AFNGELTR-ND TBD62304AFNGELCT-ND TBD62304AFNGELDKR-ND TBD62304AFNGELDKR TBD62304AFNG(ZEL) TBD62304AFNGELTR TBD62304AFNG(Z,EL) TBD62304AFNGEL TBD62304AFNGELCT
Description	IC PWR DRIVER N-CHAN 1:1 16SSOP
Detailed Description	Power Switch/Driver 1:1 N-Channel 400mA 16-SSOP
Manufacturer Standard Lead Time	34 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Power Distribution Switches, Load Drivers
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

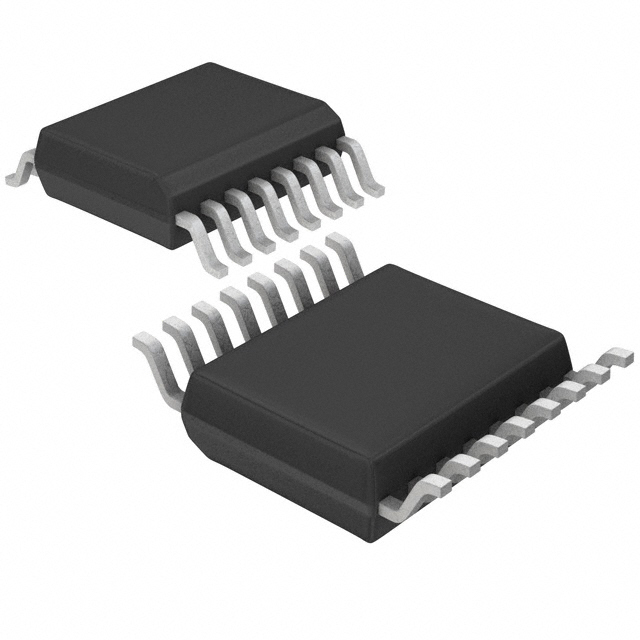

Package / Case		16-LSSOP (0.173", 4.40mm Width)
Output Type		N-Channel
Mounting Type		Surface Mount
Number of Outputs		7
Interface		On/Off
Switch Type		General Purpose
Operating Temperature		-40°C ~ 85°C
Output Configuration		Low Side
Rds On (Typ)		1.5Ohm
Input Type		Inverting
Voltage - Load		50V (Max)
Voltage - Supply (Vcc/Vdd)		4.5V ~ 5.5V
Current - Output (Max)		400mA
Ratio - Input:Output		1:1
Supplier Device Package		16-SSOP

RESOURCE TYPE		LINK
Datasheets		TBD62304AFNG,EL
