TB67H452FTG,EL

TB67H452FTG,EL

Part Number	TB67H452FTG,EL
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TB67H452FTGELTR-ND TB67H452FTGELCT-ND TB67H452FTGELDKR-ND TB67H452FTG(ZEL) TB67H452FTGEL TB67H452FTGELTR TB67H452FTGELCT TB67H452FTG(Z,EL) TB67H452FTGELDKR
Description	IC MOTOR DRIVER 48QFN
Detailed Description	Bipolar Motor Driver Power MOSFET PWM 48-QFN (7x7)
Manufacturer Standard Lead Time	32 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Motor Drivers, Controllers
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

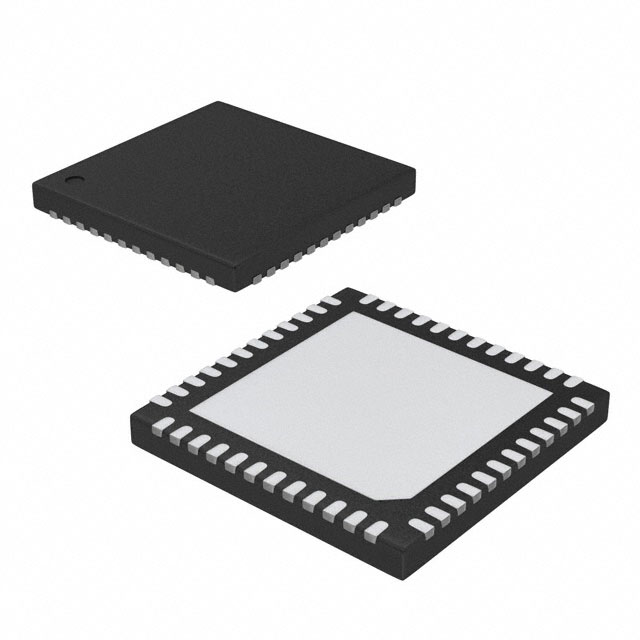

Package / Case		48-VFQFN Exposed Pad
Mounting Type		Surface Mount
Function		Driver
Current - Output		5A
Interface		PWM
Operating Temperature		-20°C ~ 85°C (TA)
Output Configuration		Half Bridge (4)
Voltage - Supply		4.5V ~ 5.5V
Applications		General Purpose
Technology		Power MOSFET
Voltage - Load		6.3V ~ 38V
Supplier Device Package		48-QFN (7x7)
Motor Type - Stepper		Bipolar
Motor Type - AC, DC		Brushed DC

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TB67H452FTG,EL

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
RoHS Status		ROHS3 Compliant

In Stock: 2000

Can ship immediately.
