TB67B008FNG,EL

TB67B008FNG,EL

Part Number	TB67B008FNG,EL
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TB67B008FNGELTR-ND TB67B008FNGELCT-ND TB67B008FNGELDKR-ND TB67B008FNGELCT TB67B008FNGELDKR TB67B008FNG(O,EL) TB67B008FNGELTR
Description	IC MOTOR DRIVER 5.5V-22V 24SSOP
Detailed Description	Motor Driver Power MOSFET PWM 24-SSOP
Manufacturer Standard Lead Time	32 weeks

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Motor Drivers, Controllers
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

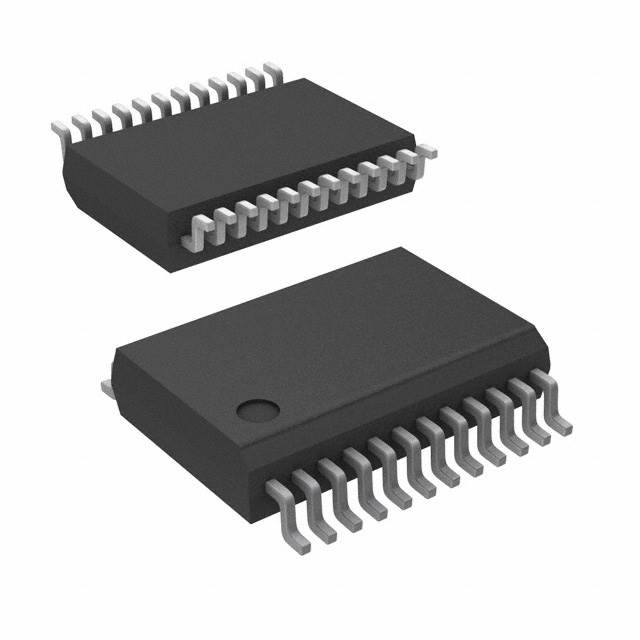

Package / Case		24-LSSOP (0.220", 5.60mm Width)
Mounting Type		Surface Mount
Function		Driver - Fully Integrated, Control and Power Stage
Current - Output		3A
Interface		PWM
Operating Temperature		-40°C ~ 105°C (TA)
Output Configuration		Half Bridge (3)
Voltage - Supply		5.5V ~ 22V
Applications		General Purpose
Technology		Power MOSFET
Voltage - Load		5.5V ~ 22V
Supplier Device Package		24-SSOP
Motor Type - AC, DC		Brushless DC (BLDC)

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 1985
