TB3500H-13-F

TB3500H-13-F

Part Number	TB3500H-13-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	TB3500H-FDITR-ND TB3500H-FDICT-ND TB3500H-FDIDKR-ND TB3500H-FDIDKR TB3500H-FDITR TB3500H-FDICT TB3500H13F
Description	THYRISTOR 320V 400A DO214AA
Detailed Description	320V Off-State 400 A Ipp TVS Thyristor DO-214AA, SMB
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) Thyristors
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Capacitance		80pF

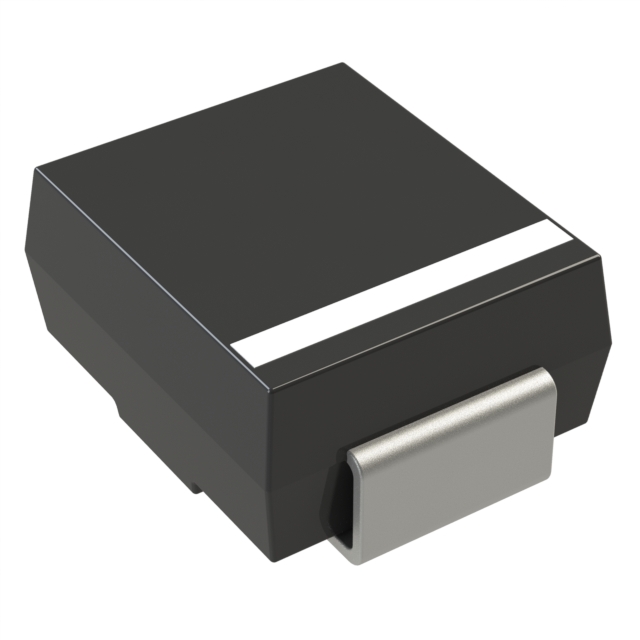

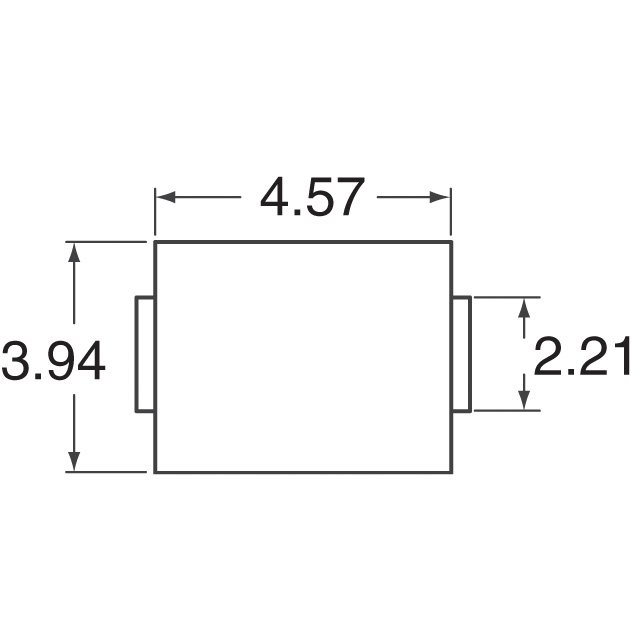

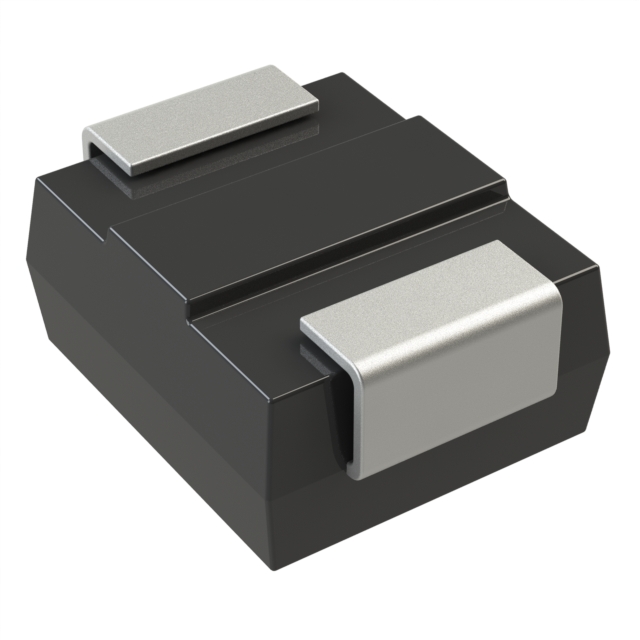

Package / Case		DO-214AA, SMB
Mounting Type		Surface Mount
Number of Elements		1
Voltage - Breakover		400V
Voltage - Off State		320V
Voltage - On State		3.5 V
Supplier Device Package		SMB
Current - Hold (Ih)		150 mA
Current - Peak Pulse (10/1000µs)		100 A
Current - Peak Pulse (8/20µs)		400 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TB3500H-13-F
Datasheets		Diodes Environmental Compliance Cert
Datasheets		TB Series SMB Side
Datasheets		TB Series SMB Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 13852

Can ship immediately.
