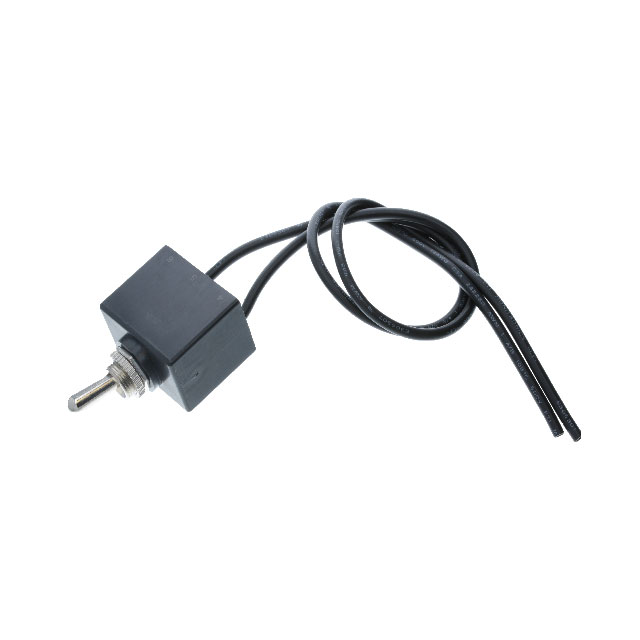

TB1-1B-DC-WW

TB1-1B-DC-WW

Part Number	TB1-1B-DC-WW
Manufacturer	Switch Components
Other Part Numbers	2299-TB1-1B-DC-WW-ND 2299-TB1-1B-DC-WW
Description	SWITCH TOGGLE SPST-NO 25A 12V
Detailed Description	Toggle Switch SPST-NO Panel Mount
Datasheet	Datasheet

Product Attributes

Category		Switches Toggle Switches
Manufacturer		Switch Components
Series		TB1
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		25A (DC)
Mounting Type		Panel Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-40°C ~ 85°C
Termination Style		Wire Leads
Illumination		Non-Illuminated
Bushing Thread		15/32-32
Actuator Length		15.32mm
Actuator Type		Standard Round
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Circular - 12.00mm Dia
Voltage Rating - DC		12 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TB1-1B-DC-WW

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
