TAU-2619,03-B _ Multiple Conductor Cables_Cables, Wires

Part Number	TAU-2619,03-B
Manufacturer	Agilink Microwires
Other Part Numbers	4001-TAU-2619,03-B-ND 4001-TAU-2619,03-B

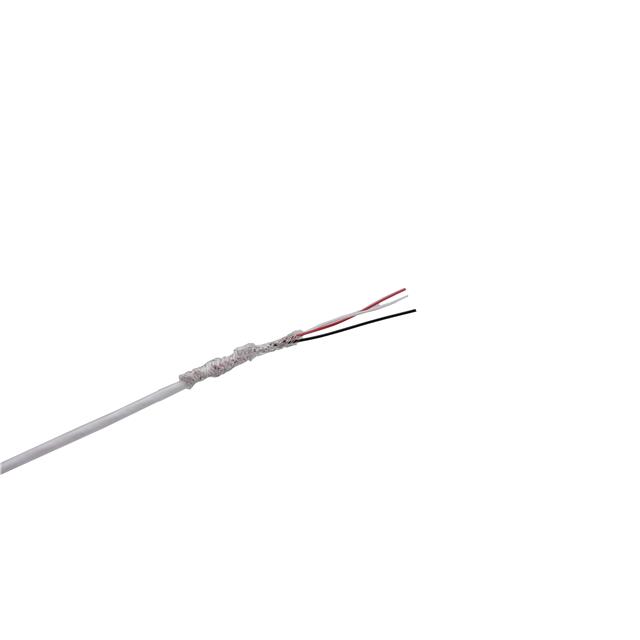

Description	CABLE 3CON 26AWG WHT SHLD 500'
Detailed Description	3 Conductor Multi-Conductor Cable White 26 AWG Braid 500.0' (152.4m)
Datasheet	Datasheet

Category		Cables, Wires Multiple Conductor Cables
Manufacturer		Agilink Microwires
Series		TAU
Packaging		Spool
Part Status		Active
Features		UL94-V0, Temperature, Mechanical Resistant, Oil Resistant, UV Resistant
Length		500.0' (152.4m)
Wire Gauge		26 AWG
Jacket (Insulation) Material		Perfluoro Alkoxy (PFA)
Conductor Strand		19/0.0039"
Operating Temperature		-196°C ~ 200°C
Number of Conductors		3
Cable Type		Multi-Conductor
Jacket (Insulation) Diameter		0.092" (2.35mm)
Conductor Insulation		Perfluoro Alkoxy (PFA)
Jacket (Insulation) Thickness		0.0300" (0.762mm)
Shield Coverage		92%
Shield Material		Copper, Silver Coated
Shield Type		Braid
Conductor Material		Copper, Silver Coated
Jacket Color		White
Voltage		600 V

RESOURCE TYPE		LINK
Datasheets		TAU-2619,03-B

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.49.2000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
