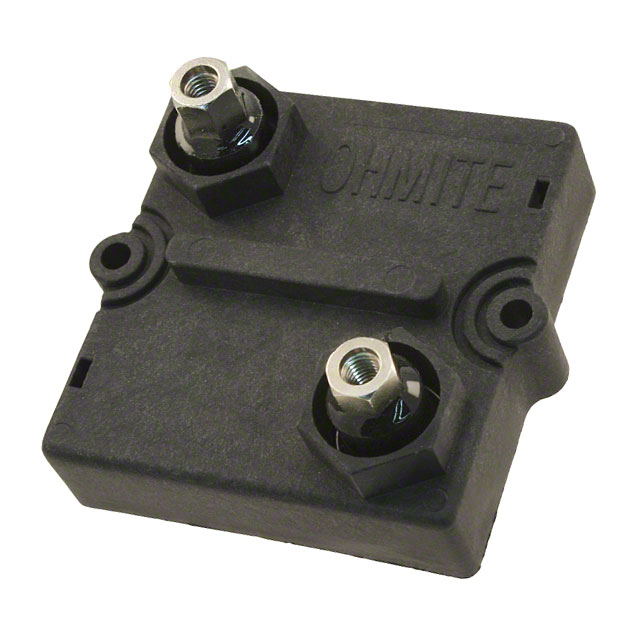

TAP800K10KE

Part Number
TAP800K10KE
Manufacturer Ohmite
Other Part Numbers
2485-TAP800K10KE-ND
2485-TAP800K10KE
Description HEAT SINKABLE PLANAR RESISTOR
Detailed Description 10 kOhms ±10% 800W Thick Film Chassis Mount Resistor
Datasheet Datasheet

Product Attributes

Category
Manufacturer Ohmite
Series
TAP800
Packaging
Bulk
Part Status Active
Power (Watts) 800W
Tolerance ±10%
Lead Style M5 Threaded
Package / Case Box
Temperature Coefficient ±150ppm/°C
Size / Dimension 2.559" L x 2.362" W (65.00mm x 60.00mm)
Composition Thick Film
Operating Temperature -55°C ~ 150°C
Mounting Feature Flanges
Coating, Housing Type Epoxy Coated
Height - Seated (Max) 1.280" (32.50mm)
Resistance 10 kOhms

Documents & Media

RESOURCE TYPE LINK
Datasheets TAP800K10KE

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status RoHS Compliant
