TA78L015AP(TPE6,FM

Part Number
TA78L015AP(TPE6,FM
Manufacturer Toshiba Electronic Devices and Storage Corporation
Other Part Numbers
TA78L015AP(TPE6FM-ND
TA78L015APTPE6FM
TA78L015AP(TPE6FM
Description IC REG LINEAR 15V 150MA LSTM
Detailed Description Linear Voltage Regulator IC Positive Fixed 1 Output 150mA LSTM

Product Attributes

Category
Manufacturer Toshiba Electronic Devices and Storage Corporation
Series
Packaging
Bulk
Part Status Obsolete

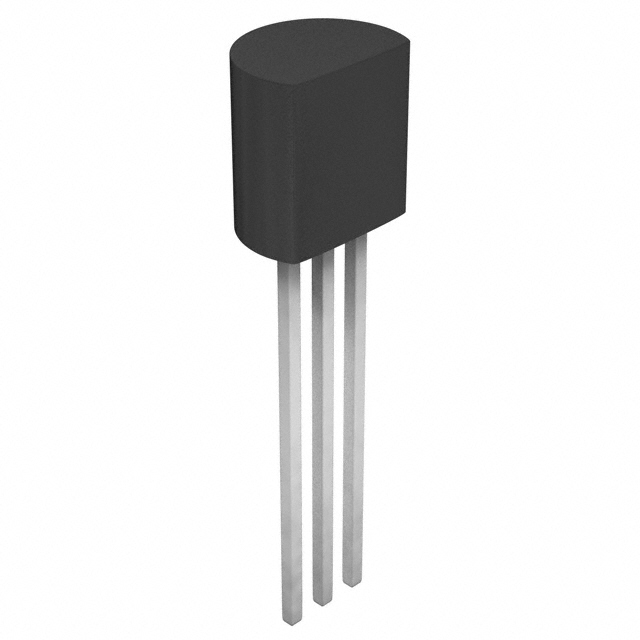

Package / Case TO-226-3, TO-92-3 Long Body
Output Type Fixed
Mounting Type Through Hole
Current - Output 150mA
Operating Temperature -30°C ~ 85°C
Output Configuration Positive
Current - Quiescent (Iq) 6.5 mA
Voltage - Input (Max) 35V
Number of Regulators 1
Supplier Device Package LSTM
Voltage - Output (Min/Fixed) 15V
PSRR 40dB (120Hz)
Voltage Dropout (Max) 1.7V @ 40mA (Typ)
Protection Features Over Current, Over Temperature

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Obsolete

This product is no longer manufactured.
