TA48M025F(T6L1,SNQ _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	TA48M025F(T6L1,SNQ
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TA48M025F(T6L1SNQTR-ND TA48M025F(T6L1SNQCT-ND TA48M025F(T6L1SNQDKR-ND TA48M025F(T6L1SNQCT TA48M025FT6L1SNQ TA48M025F(T6L1SNQTR TA48M025F(T6L1SNQDKR TA48M025F (T6L1,SNQ
Description	IC REG LINEAR 2.5V 500MA PW-MOLD
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 500mA PW-MOLD

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

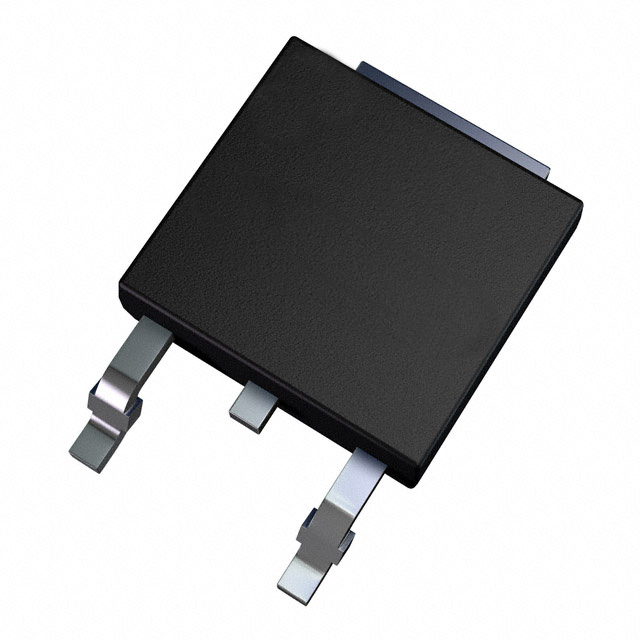

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		500mA
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		1.4 mA
Voltage - Input (Max)		29V
Number of Regulators		1
Supplier Device Package		PW-MOLD
Voltage - Output (Min/Fixed)		2.5V
PSRR		72dB (120Hz)
Voltage Dropout (Max)		0.65V @ 500mA
Protection Features		Over Current, Over Temperature, Over Voltage, Reverse Polarity
Current - Supply (Max)		25 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
