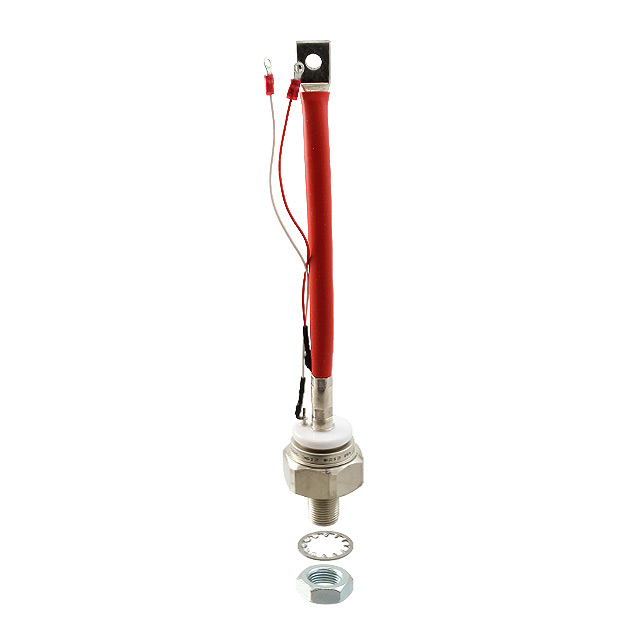

T700123504BY

T700123504BY

Part Number	T700123504BY
Manufacturer	Powerex, Inc.
Other Part Numbers	835-1147-ND T700123504BY-ND 835-1147
Description	SCR 1.2KV 550A TO209
Detailed Description	SCR 1.2 kV 550 A Standard Recovery Chassis, Stud Mount TO-209 Variation
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Powerex, Inc.
Series
Packaging		Bulk
Part Status		Active
Package / Case		TO-209 Variation
Mounting Type		Chassis, Stud Mount
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C
Current - Gate Trigger (Igt) (Max)		150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		9100A, 10000A
Current - On State (It (AV)) (Max)		350 A
Voltage - Gate Trigger (Vgt) (Max)		3 V
Voltage - On State (Vtm) (Max)		1.4 V
Current - Off State (Max)		30 mA
Supplier Device Package		TO-209 Variation
Current - On State (It (RMS)) (Max)		550 A
Voltage - Off State		1.2 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		T700123504BY

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 1

Can ship immediately.
