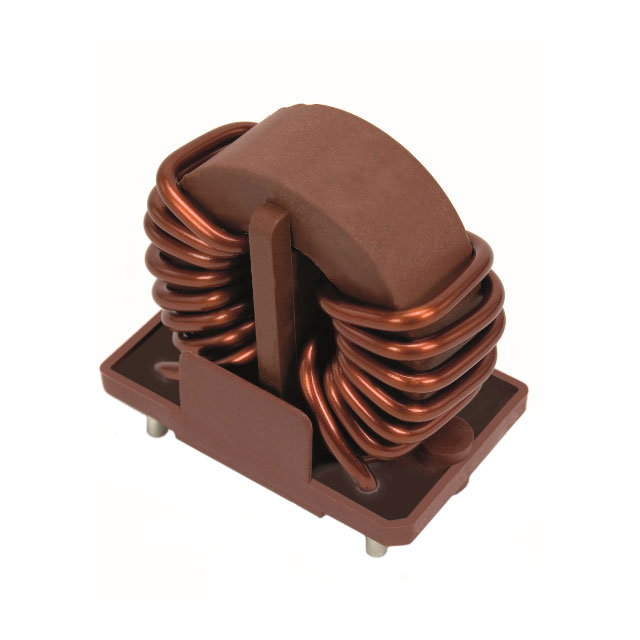

T60405R6166X039

Part Number
T60405R6166X039
Manufacturer VACUUMSCHMELZE GmbH & Co. KG.
Other Part Numbers
2258-T60405R6166X039-ND
97501401
2258-T60405R6166X039
Description CMC 750UH 18A 2LN 830 OHM TH
Detailed Description 750 µH 2 Line Common Mode Choke Through Hole 830 Ohms 18A DCR
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer VACUUMSCHMELZE GmbH & Co. KG.
Series
Packaging
Box
Part Status Active
Package / Case Vertical, 4 PC Pin
Size / Dimension 1.417" L x 0.827" W (36.00mm x 21.00mm)
Mounting Type Through Hole
Number of Lines 2
Operating Temperature -40°C ~ 130°C
Height (Max) 1.508" (38.30mm)
Current Rating (Max) 18A
Inductance @ Frequency 750 µH @ 100 kHz
Impedance @ Frequency 830 Ohms @ 100 kHz

Documents & Media

RESOURCE TYPE LINK
Datasheets T60405R6166X039

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8548.00.0000
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 26

Can ship immediately.
